Bearing Seal / Strip

DALIAN YINGYU CO., LIMITED is a firm with a rich history of over 20 years of independent design, development, and research experience focused on wind turbine bearing sealing products. Our wholly owned facilities are equipped with state-of-the-art testing equipment and laboratories. As the first one of Chinese manufacturer of wind power bearing seals, we obtained a number of national patents in the past decade. The Chinese National Standard《GB/T33154-2016 RUBBER SEALS OF SLEWING BEARING USED IN WIND POWER INDUSTRY》that drafted and established by us, has published and implemented from 1th in May 2017.

SLEWING RING BEARING SEAL

DALIAN YINGYU CO., LIMITED designs and manufactures the slewing ring bearing seal with 20 years of experience. There are hundreds of seal patterns with single, double lips or multiple limbs widely use in different industries. Compared with the competitors, our products have steadier performance and longer using life.
Download SLEWING RING BEARING SEALS CATEGORY for the details.

1. Integral vulcanized seal ring
The integral vulcanized sealing ring process is Closed -loop molded vulcanized sealing ring which is suitable for the initial assembly of bearing. The molded product has the advantage of compact structure and dimensional stability. The products are not having joint which can completely eliminate the defects caused by manual splicing, and it also can reduce the stretching or squeezing under installation and guarantee its lifetime.
2. Sealing strip
We also can supply the sealing as strip which is suitable for the operation and maintenance of wind field and on-site technical improvement.

* Diagram of the typical seals

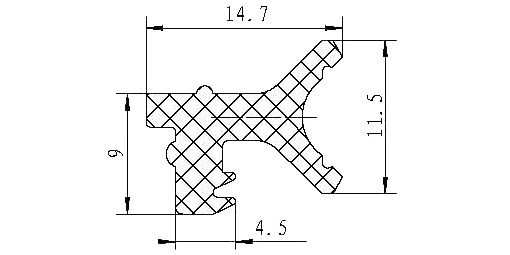

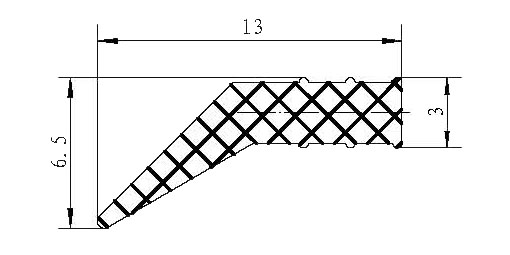

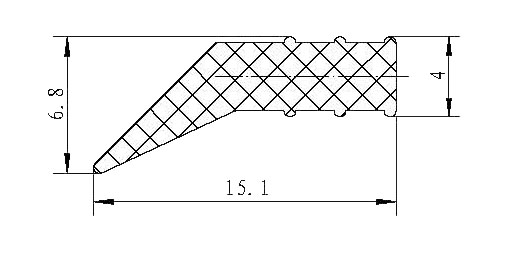

TRS-1-001	TRS-1-002	TRS-1-003	TRS-1-004

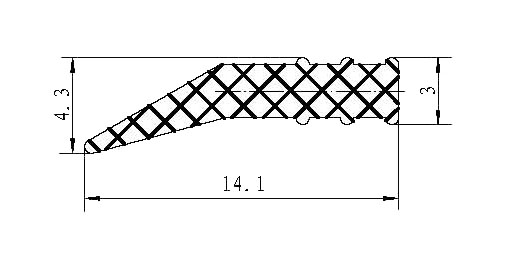

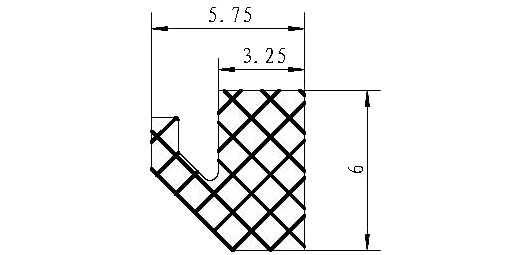

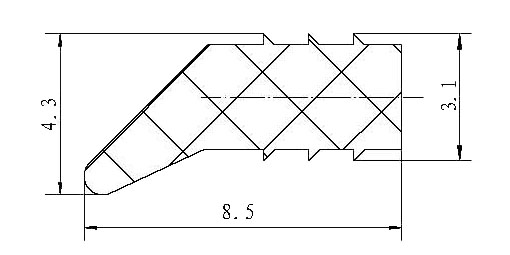

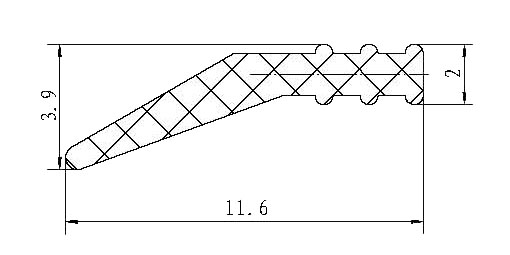

TRS-1-005	TRS-1-006	TRS-1-007	TRS-1-008

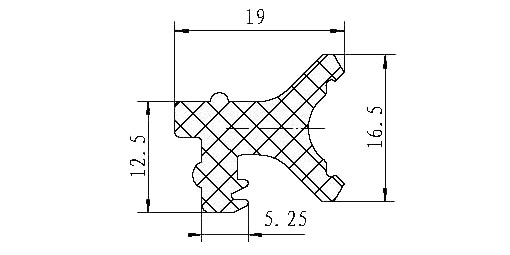

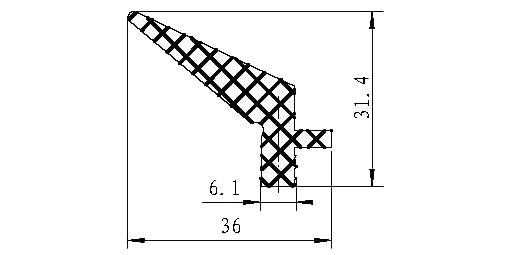

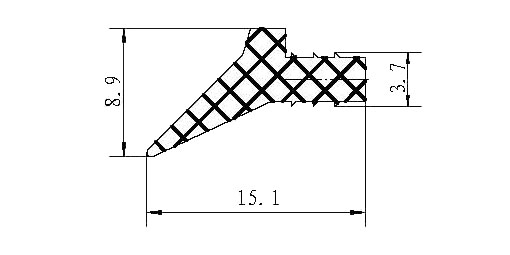

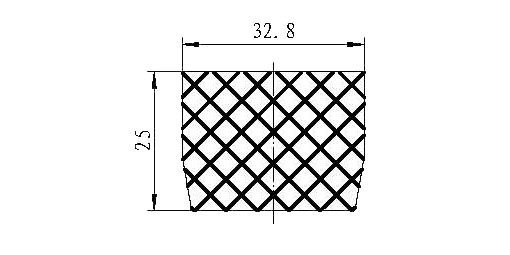

TRS-1-009	TRS-1-010	TRS-1-011	TRS-1-012

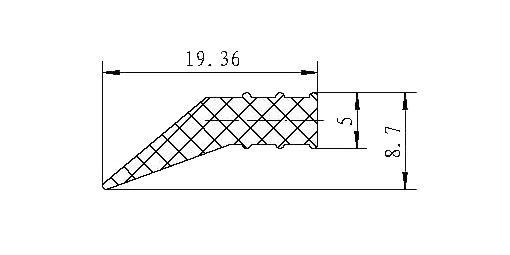

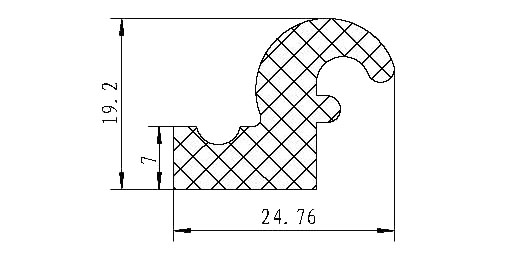

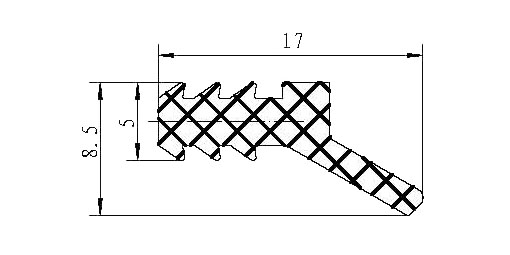

TRS-1-013	TRS-1-014	TRS-1-015	TRS-1-016

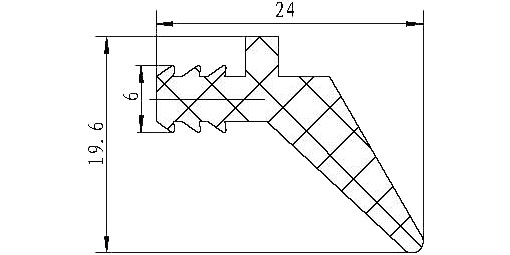

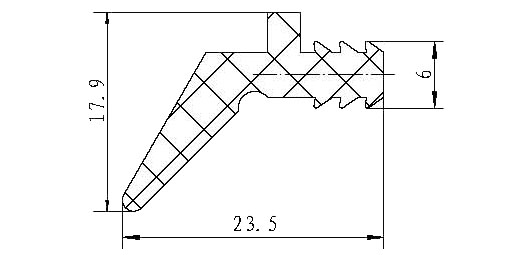

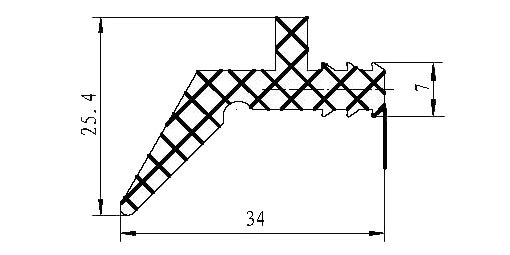

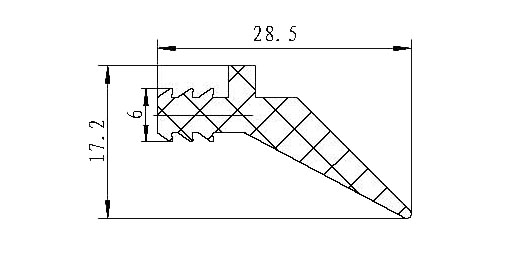

TRS-1-017	TRS-1-018	TRS-1-019	TRS-1-020

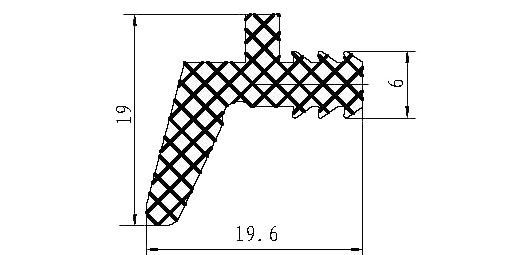

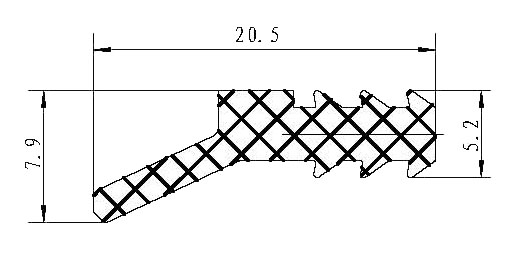

TRS-1-021	TRS-1-022	TRS-1-023	TRS-1-024

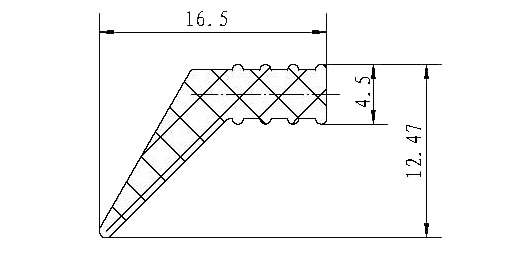

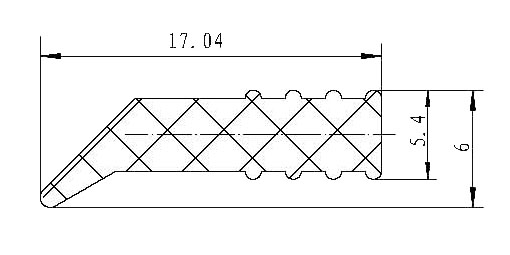

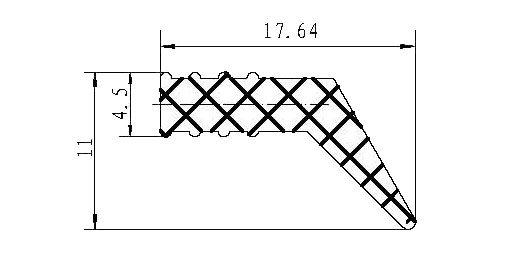

TRS-1-025	TRS-1-026	TRS-1-027	TRS-1-028

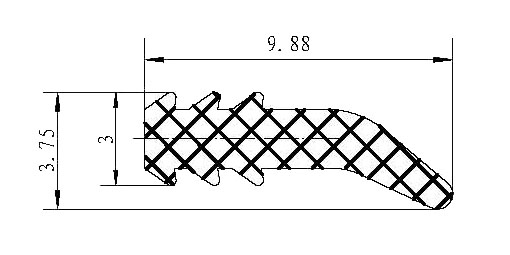

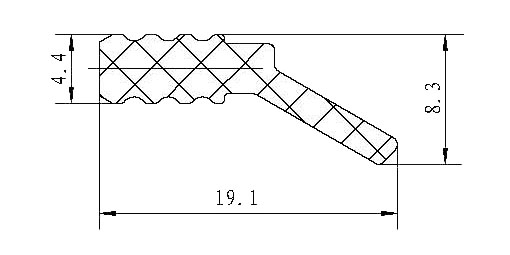

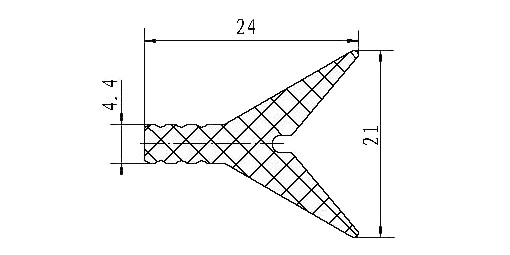

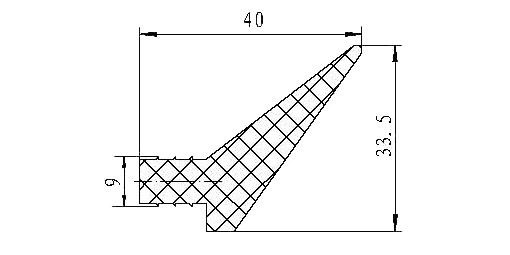

TRS-1-029	TRS-1-030	TRS-1-031	TRS-1-032

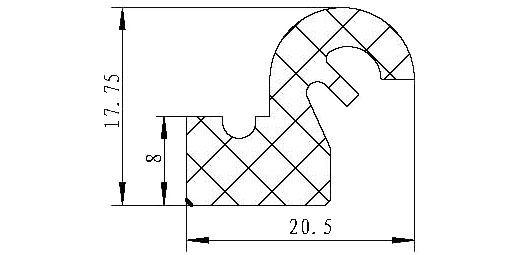

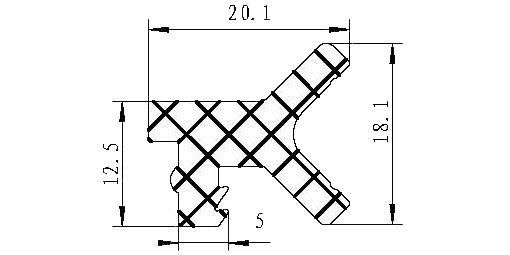

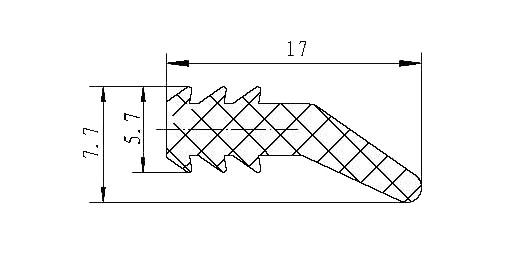

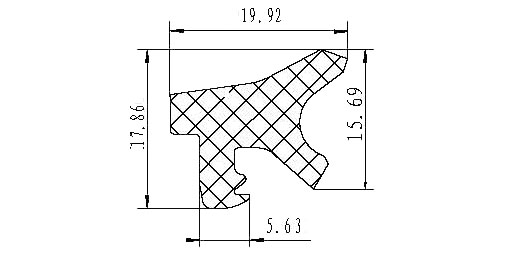

TRS-1-033	TRS-1-034	TRS-1-035	TRS-1-036

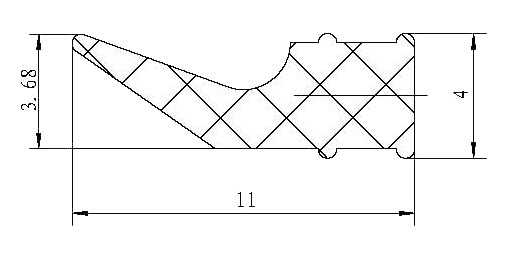

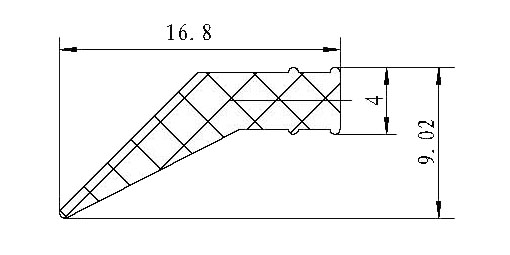

TRS-1-037	TRS-1-038	TRS-1-039	TRS-1-040

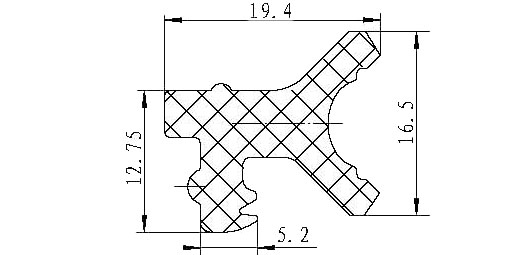

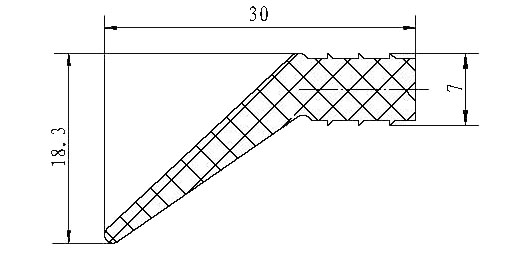

TRS-1-041	TRS-1-042	TRS-1-043	TRS-1-044

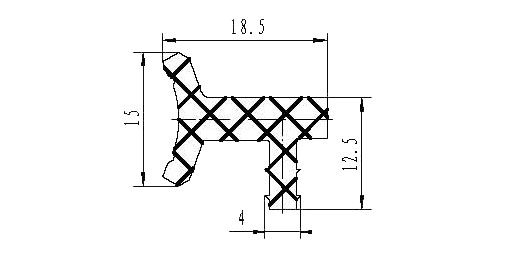

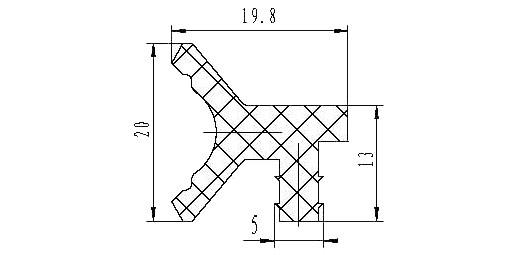

TRS-1-045	TRS-1-046	TRS-1-047	TRS-1-048

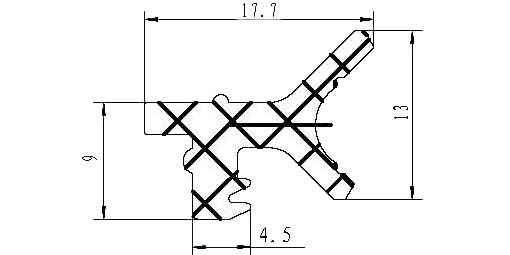

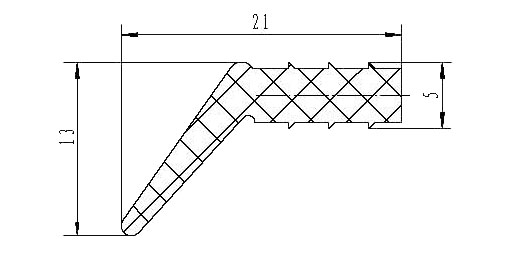

TRS-1-049	TRS-1-050	TRS-1-051	TRS-1-052

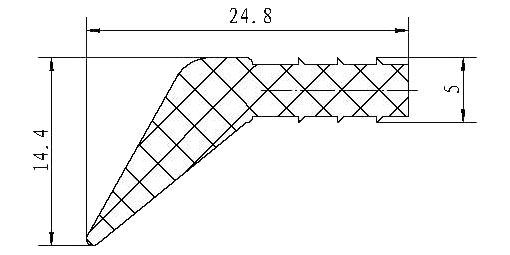

TRS-1-053	TRS-1-054	TRS-1-055	TRS-1-056

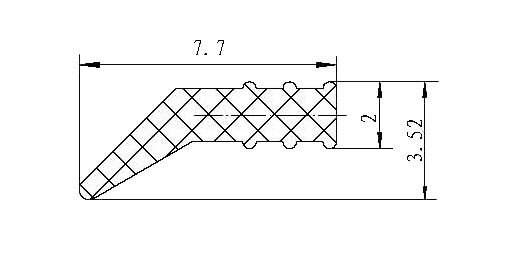

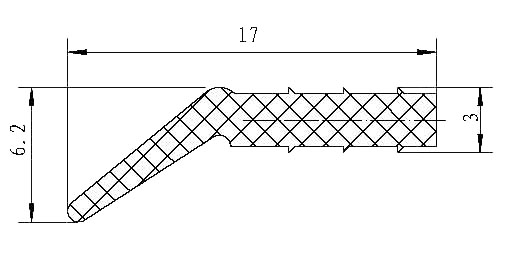

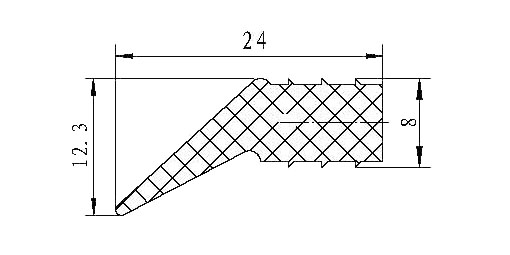

TRS-1-057	TRS-1-058	TRS-1-059	TRS-1-060

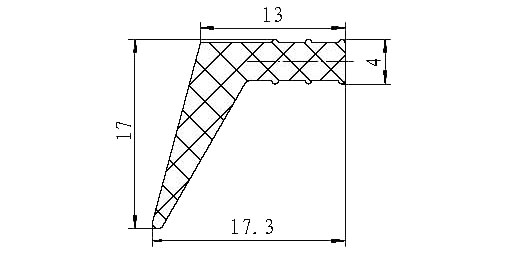

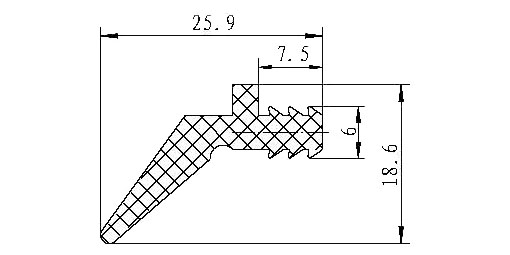

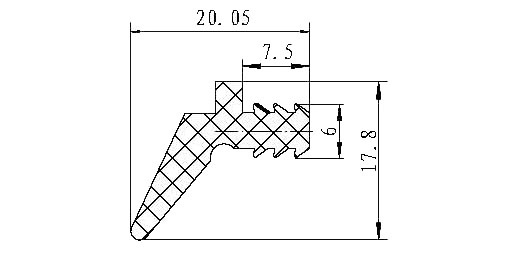

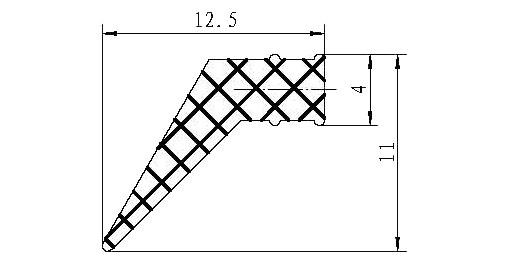

TRS-1-061	TRS-1-062	TRS-1-063	TRS-1-064

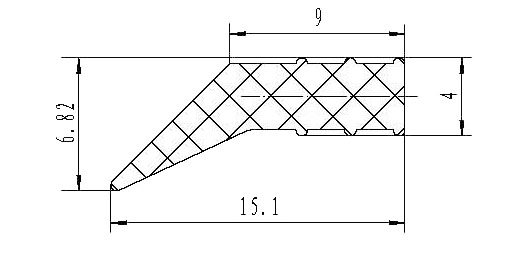

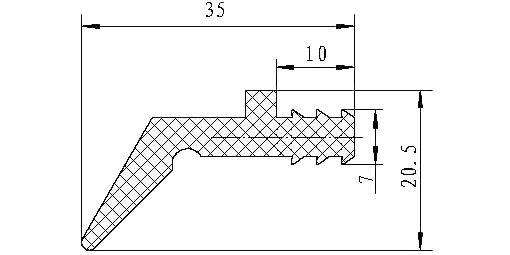

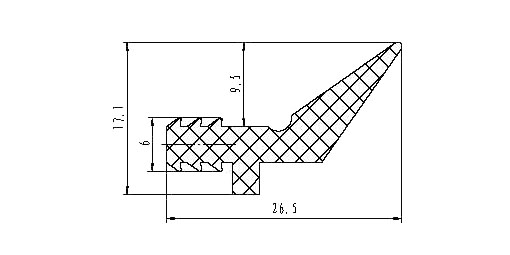

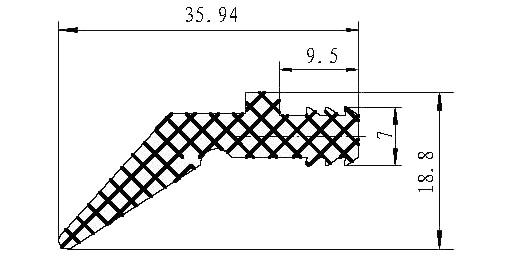

TRS-1-065	TRS-1-066	TRS-1-067	TRS-1-068

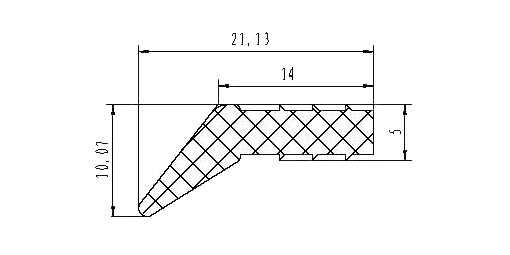

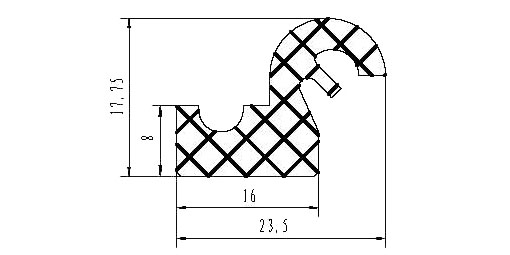

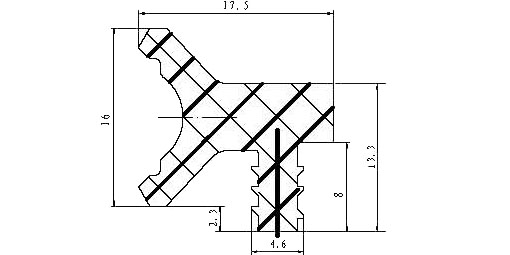

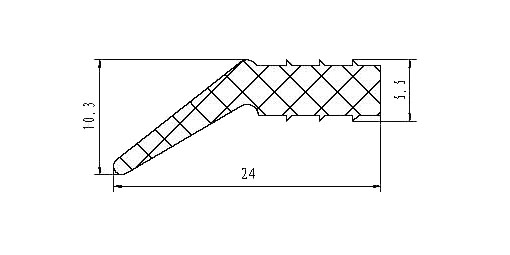

TRS-1-069	TRS-1-070	TRS-1-071	TRS-1-072

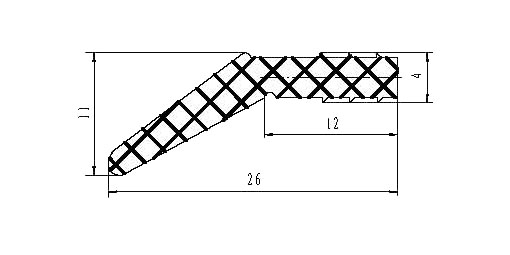

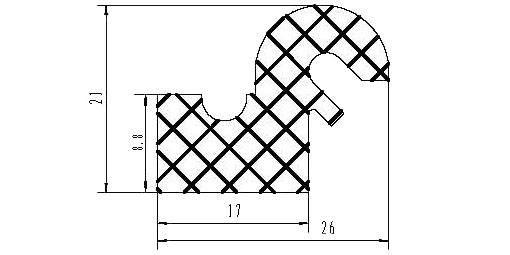

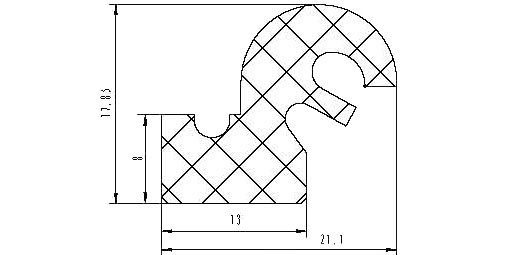

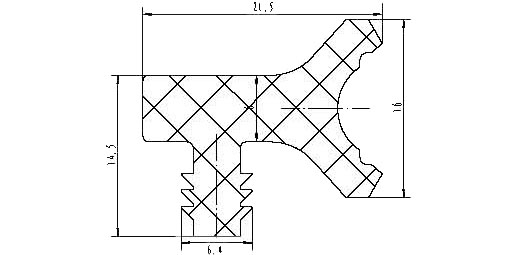

TRS-1-073	TRS-1-074	TRS-1-075	TRS-1-076

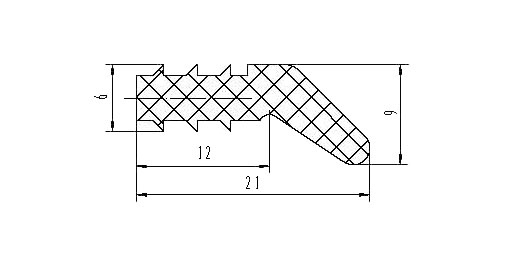

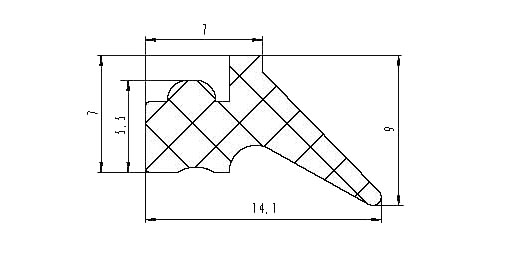

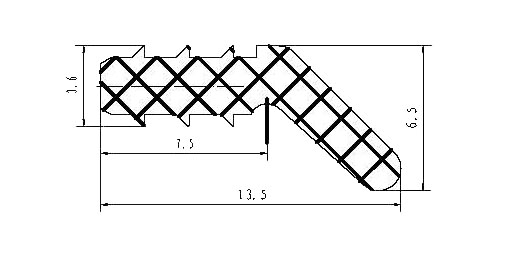

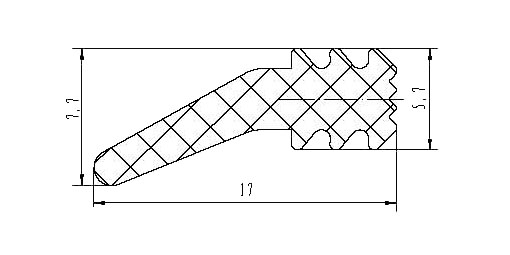

TRS-1-077	TRS-1-078	TRS-1-079	TRS-1-080

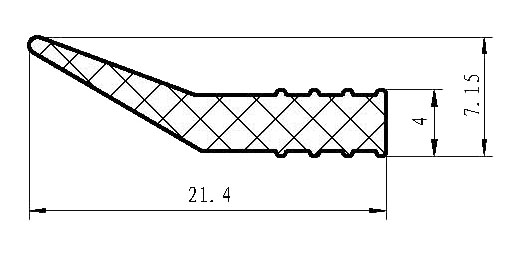

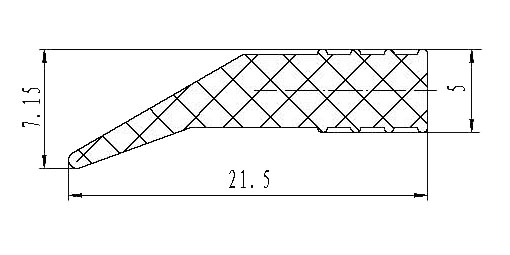

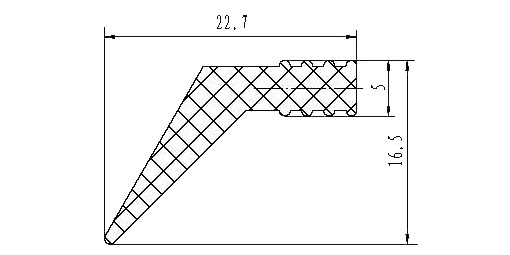

TRS-1-081	TRS-1-082	TRS-1-083	TRS-1-084

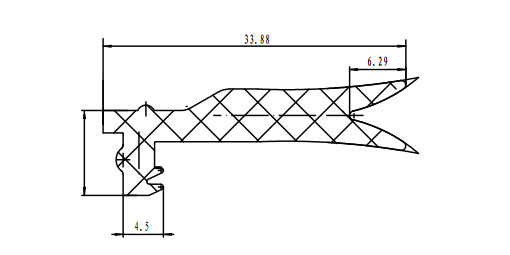

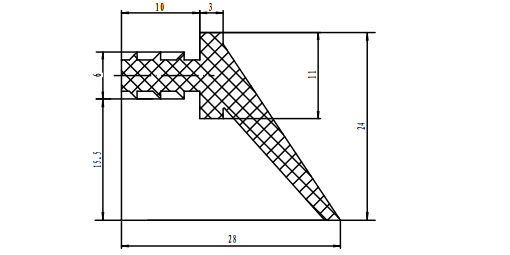

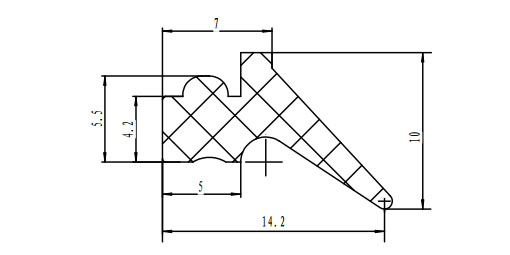

TRS-1-085	TRS-1-086	TRS-1-087	TRS-1-088

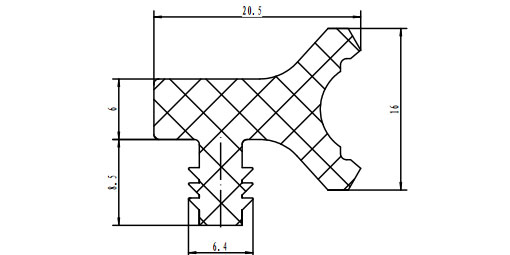

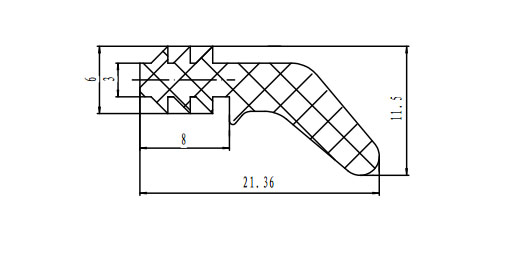

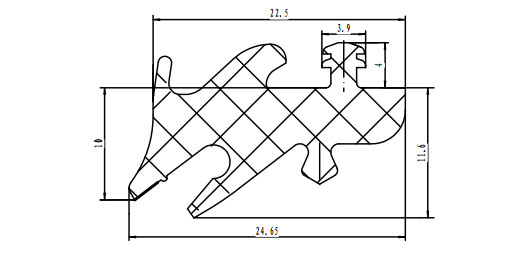

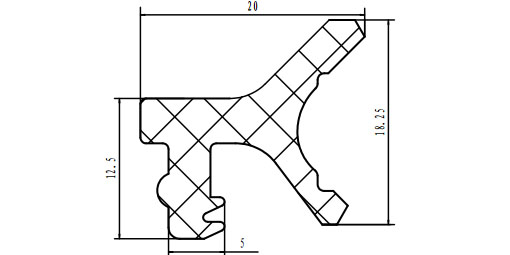

TRS-1-089	TRS-1-090	TRS-1-091	TRS-1-092

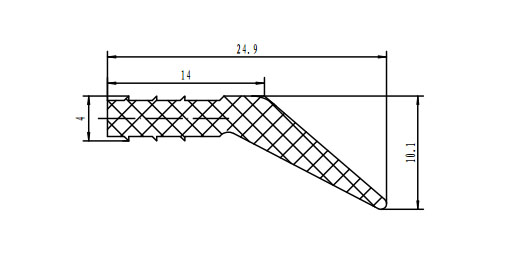

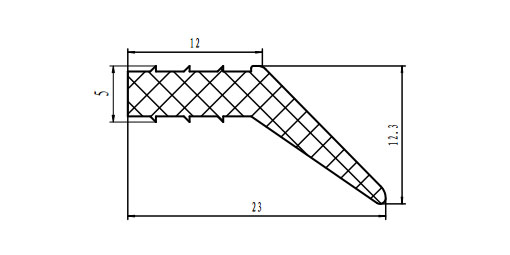

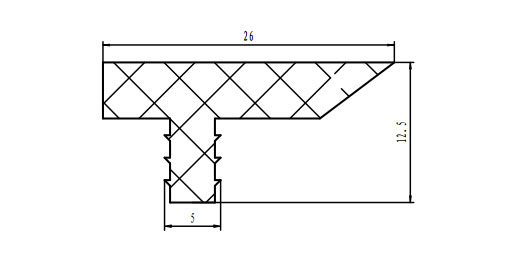

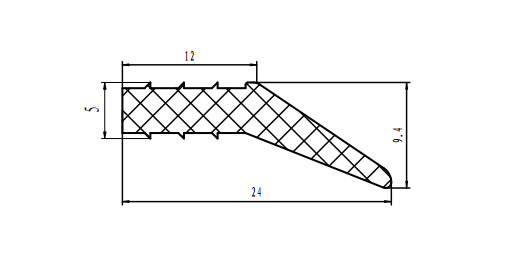

TRS-1-093	TRS-1-094	TRS-1-095	TRS-1-096

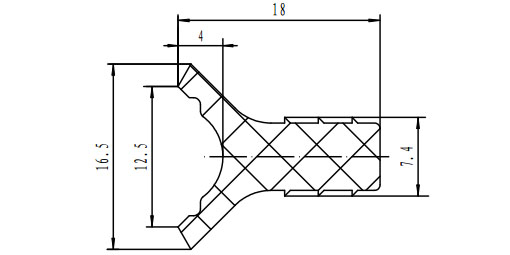

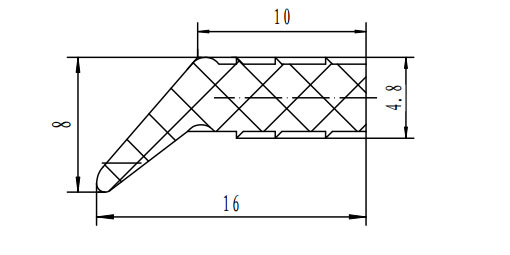

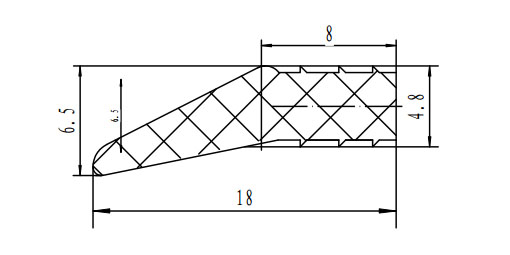

TRS-1-097	TRS-1-098	TRS-1-099	TRS-1-100

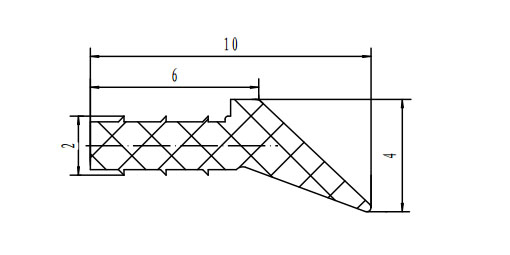

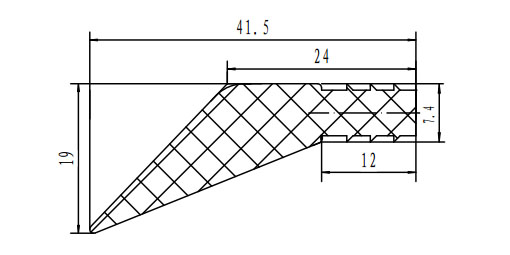

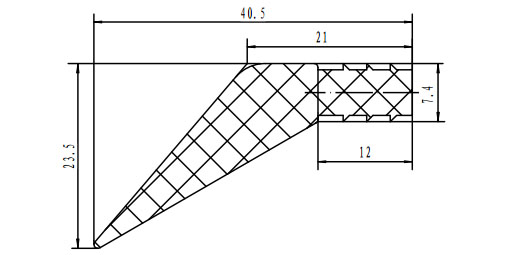

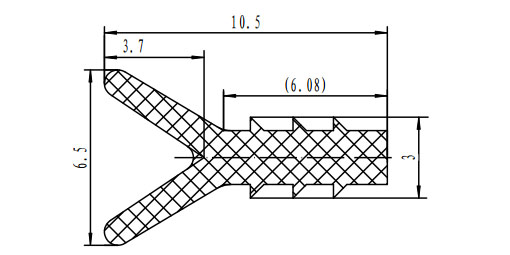

TRS-1-101	TRS-1-102	TRS-1-103	TRS-1-104

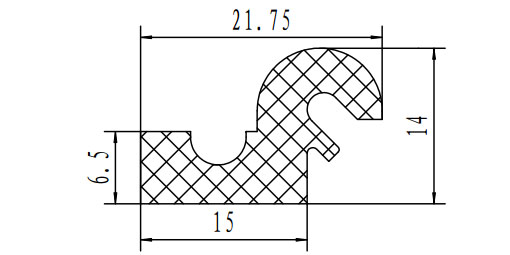

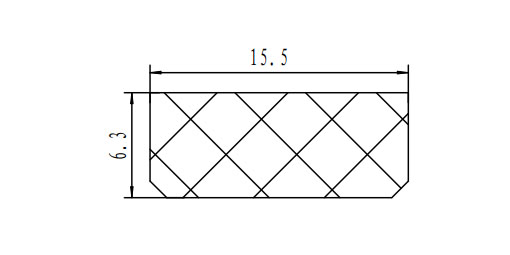

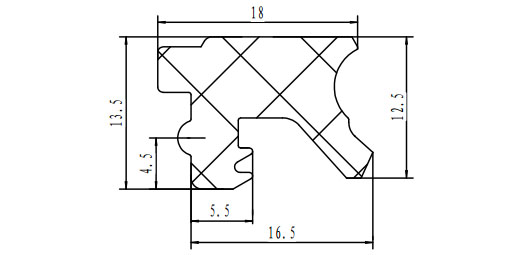

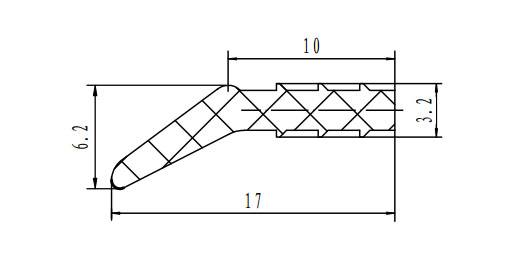

TRS-1-105	TRS-1-106	TRS-1-107	TRS-1-108

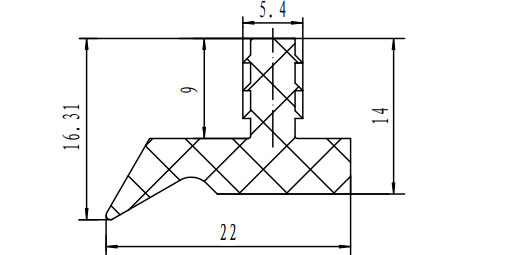

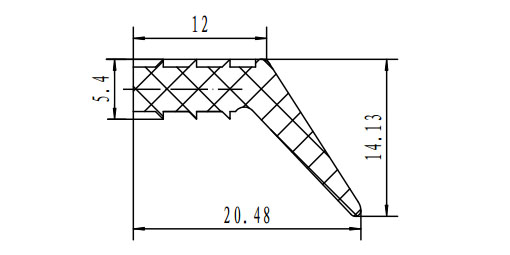

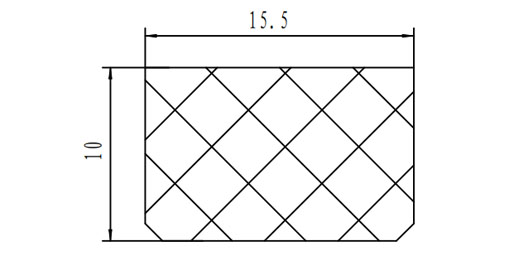

TRS-1-109	TRS-1-110	TRS-1-111	TRS-1-112

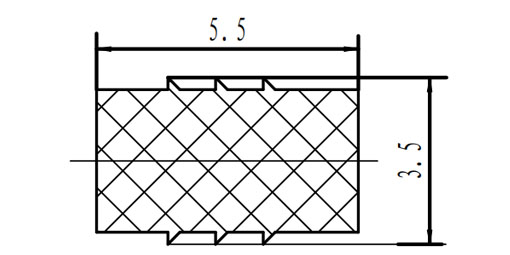

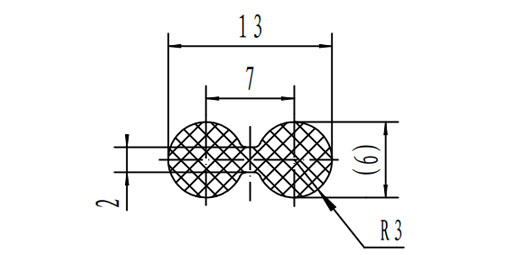

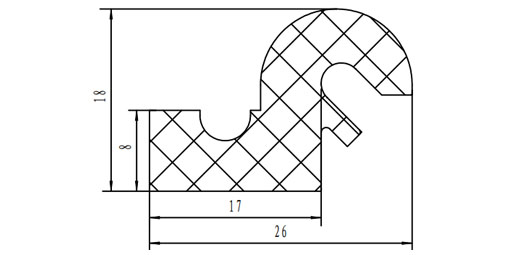

TRS-1-113	TRS-1-114	TRS-1-115	TRS-1-116

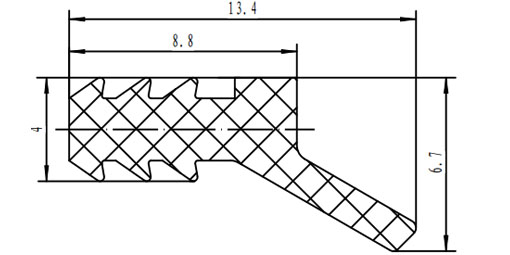

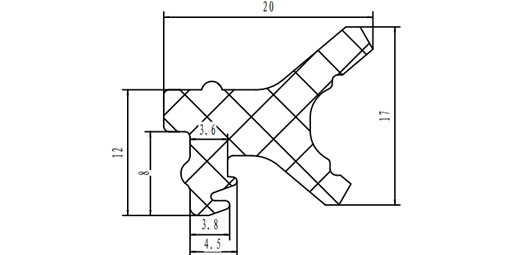

TRS-1-117	TRS-1-118	TRS-1-119	TRS-1-120

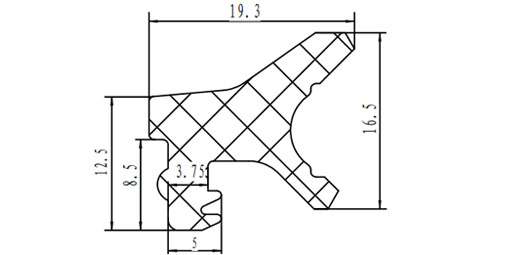

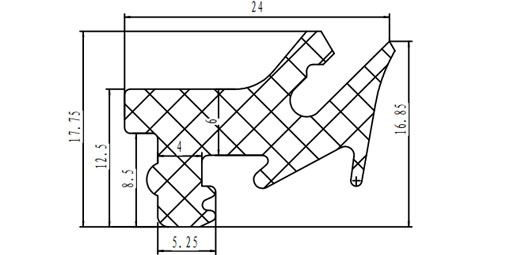

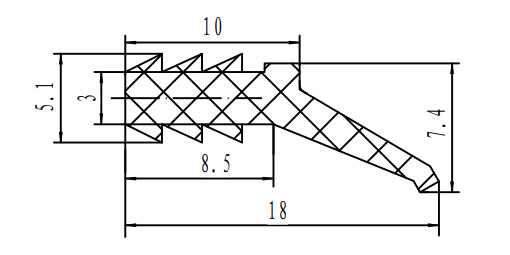

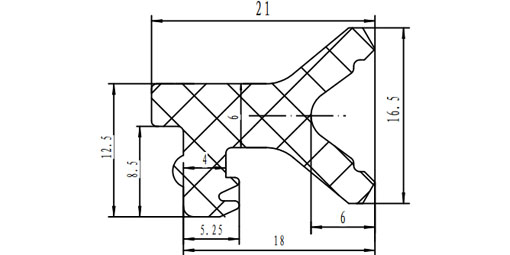

TRS-1-121	TRS-1-122	TRS-1-123	TRS-1-124

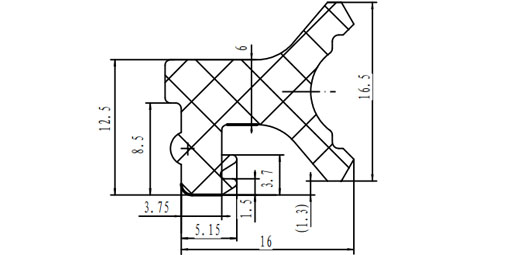

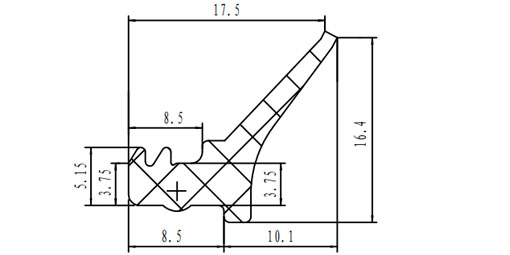

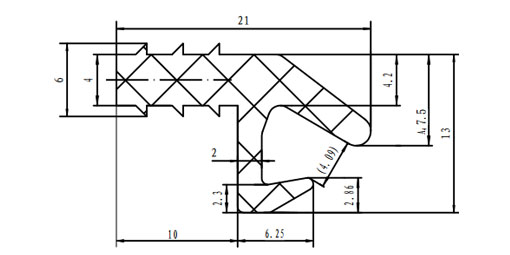

TRS-1-125	TRS-1-126	TRS-1-127	TRS-1-128

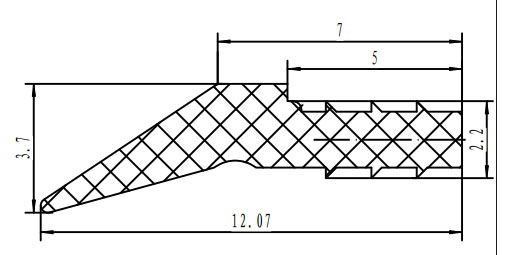

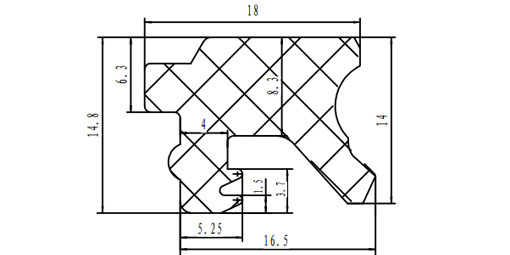

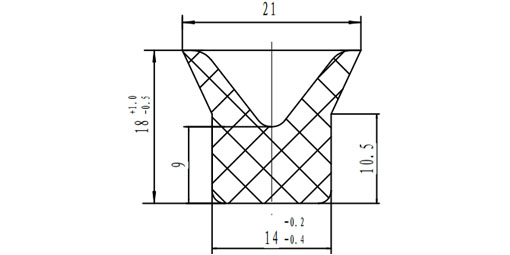

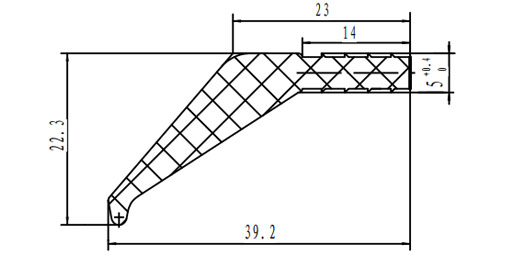

TRS-1-129	TRS-1-130	TRS-1-131	TRS-1-132

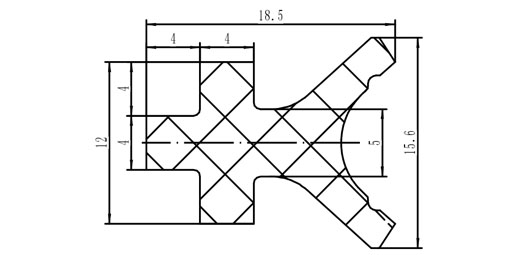

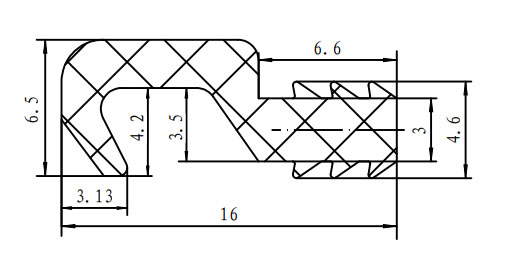

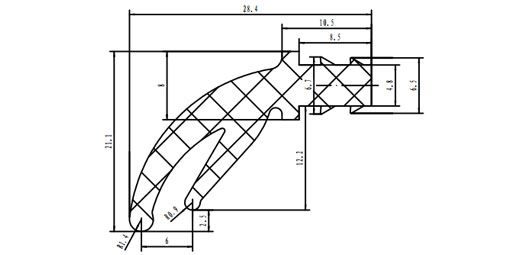

TRS-1-133	TRS-1-134	TRS-1-135	TRS-1-136

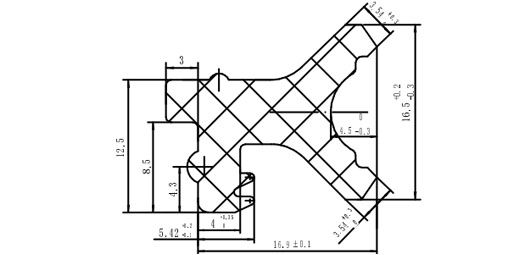

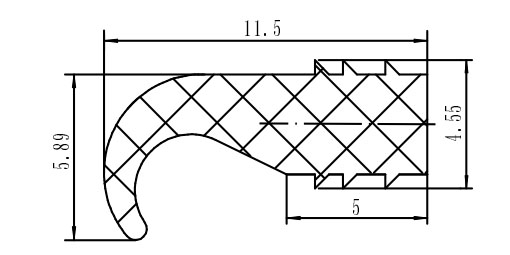

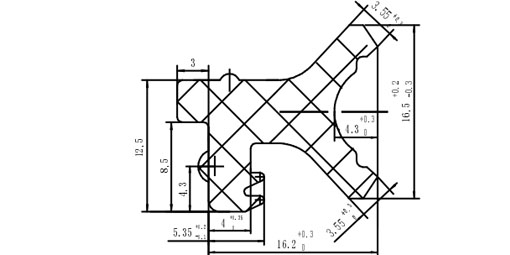

TRS-1-137	TRS-1-138	TRS-1-139	TRS-1-140

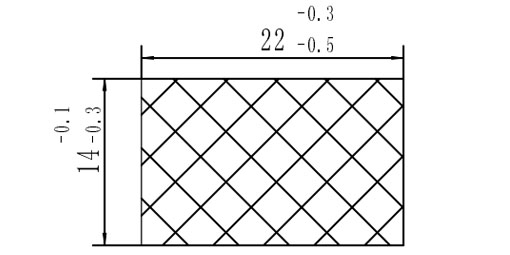

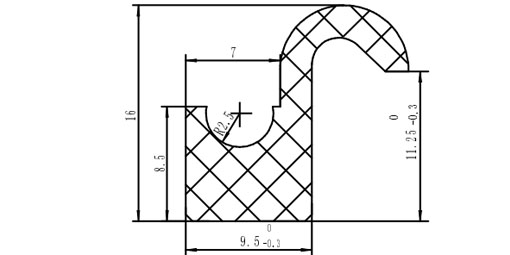

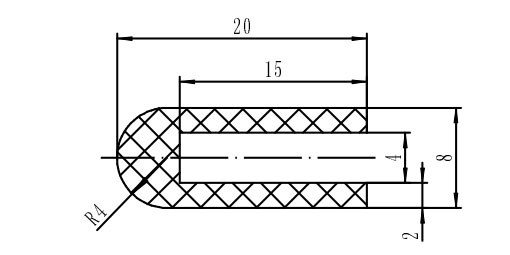

TRS-1-141	TRS-1-142	TRS-1-143	TRS-1-144

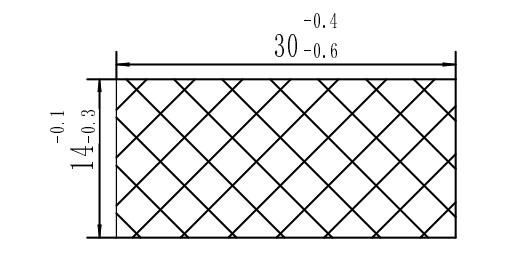

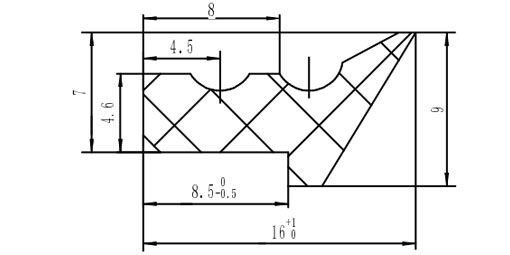

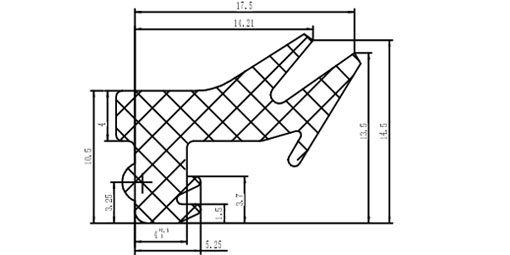

TRS-1-145	TRS-1-146	TRS-1-147	TRS-1-148

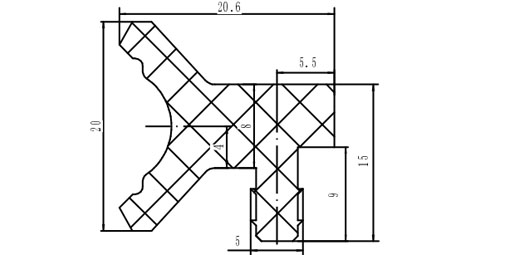

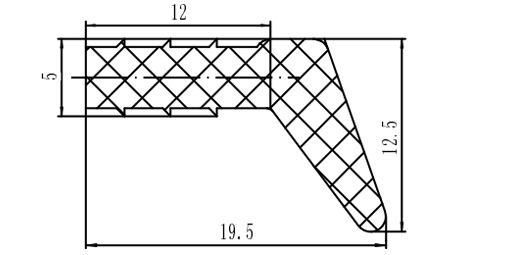

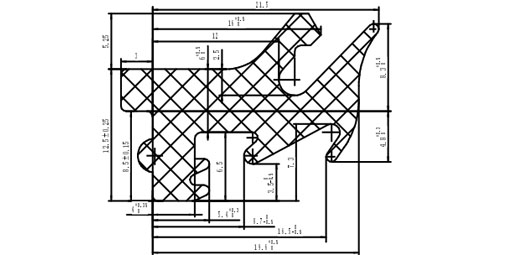

TRS-1-149	TRS-1-150	TRS-1-151	TRS-1-152

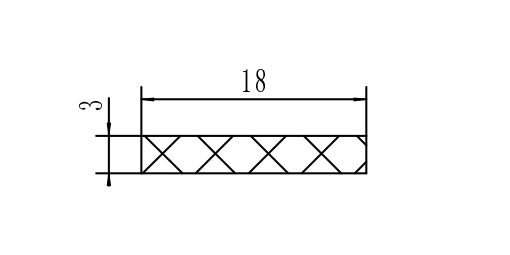

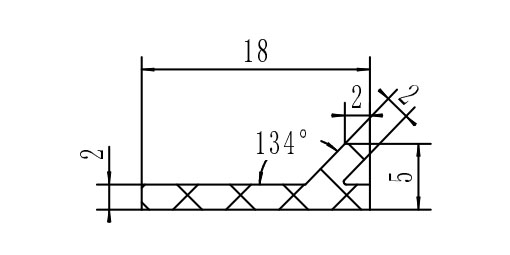

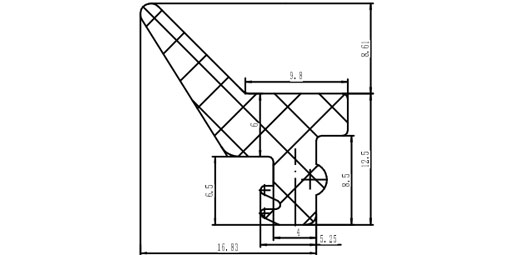

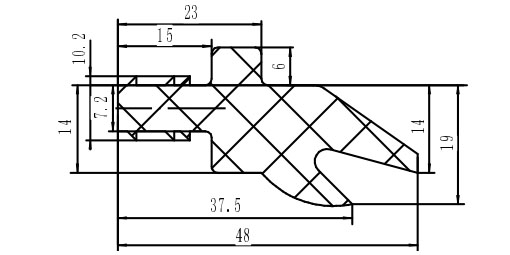

TRS-1-153	TRS-1-154	TRS-1-155	TRS-1-156

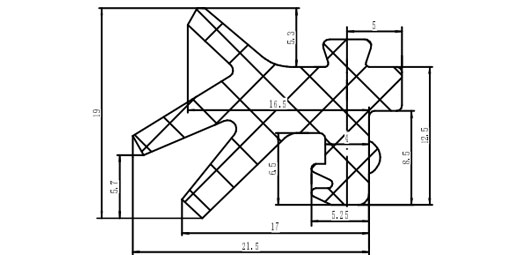

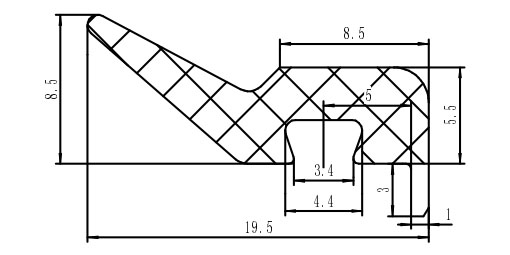

TRS-1-157	TRS-1-158	TRS-1-159	TRS-1-160

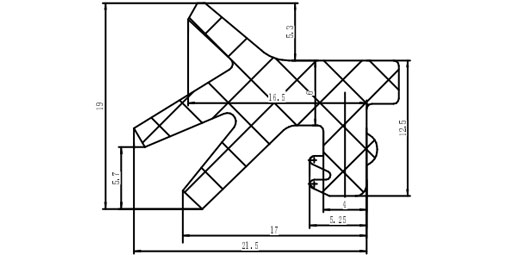

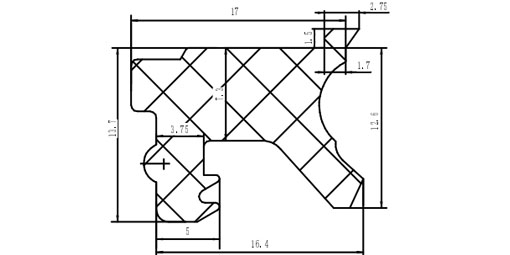

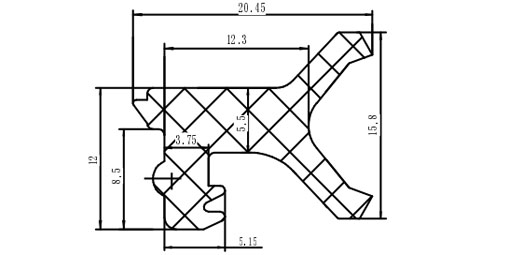

TRS-1-161	TRS-1-162	TRS-1-163	TRS-1-164

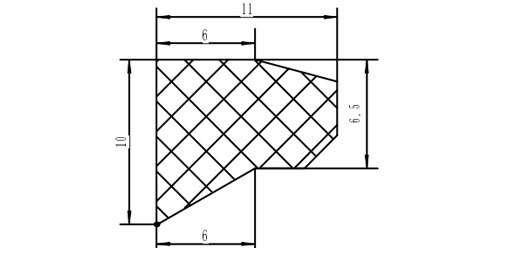

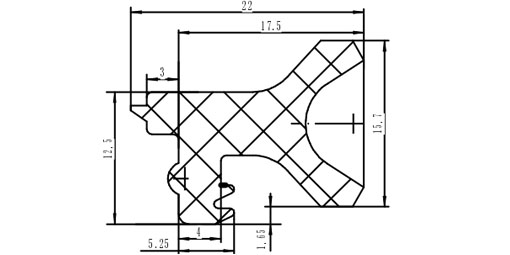

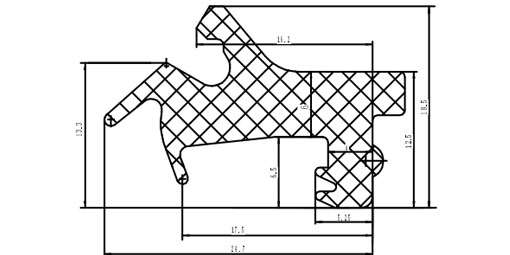

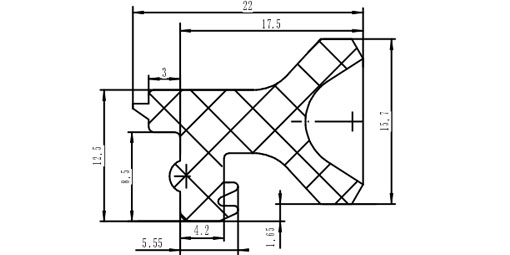

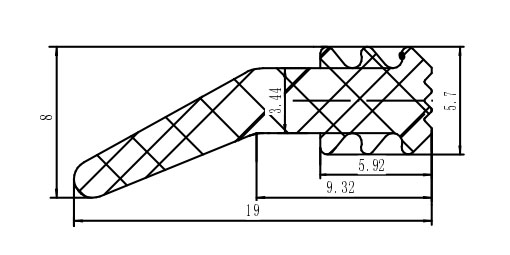

TRS-1-165	TRS-1-166	TRS-1-167	TRS-1-168

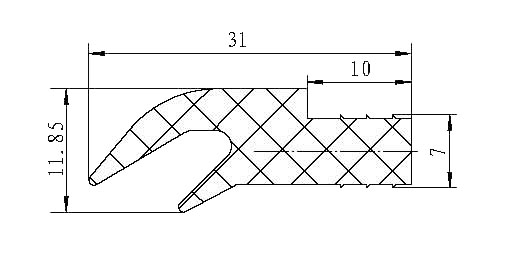

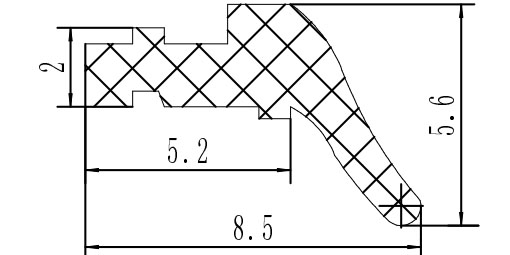

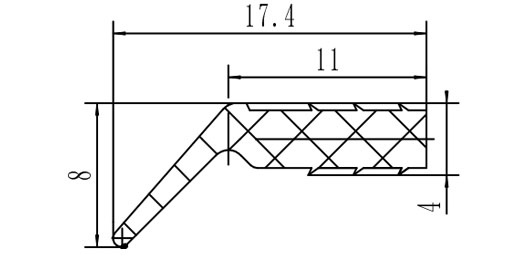

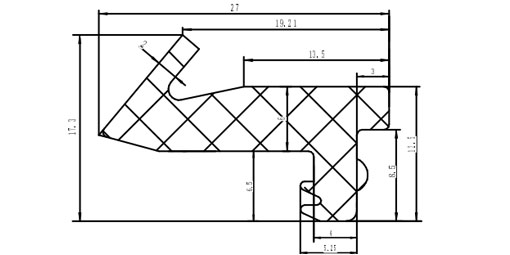

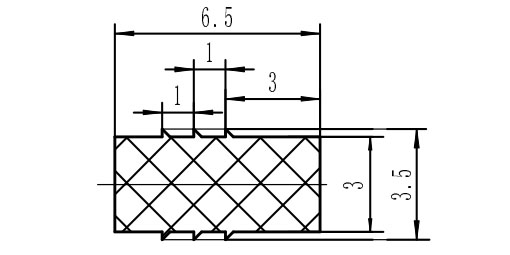

TRS-1-169	TRS-1-170	TRS-1-171	TRS-1-172

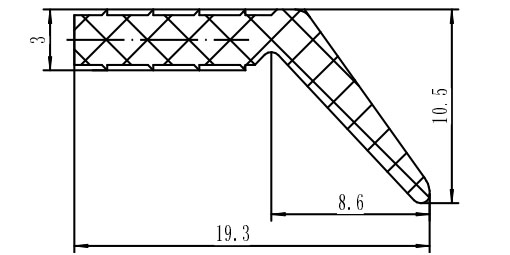

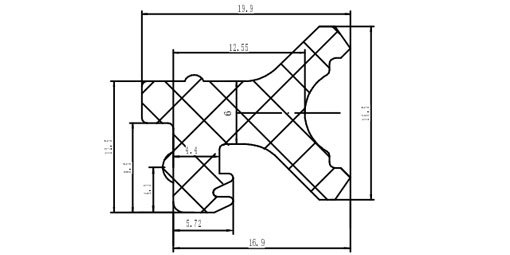

TRS-1-173	TRS-1-174

MAIN SHAFT BEARING SEAL FOR WIND TURBINE

Main shaft bearing seals of wind turbines are made of highly specialized rubber material reinforced with durable fabric and stainless steel springs. Their main purpose is to ensure long-term, defect-free, and efficient operation of turbine rotor blades through sealing in grease lubricants.
Download MAIN SHAFT BEARING SEALS CATEGORY for the details.

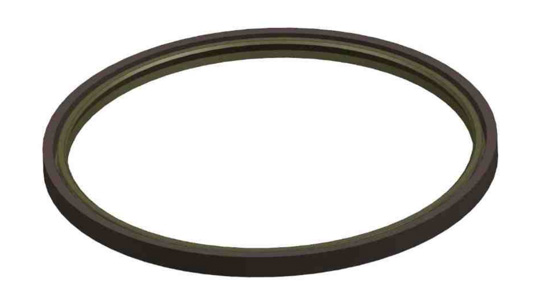

Main-vice lips seal(TJRF Type)

· Introduction
● The main-vice lips seal(TJRF) design has stronger and more flexible waist and lip, the anti-pollutant lip prevents dust from entering bearing casing.
●Offset in circular center position (to maximum of 1.5mm) of the rotating main shaft is a primary cause for seal failure; TJRF seal design has a longer waist, thus able to tighten around the main shaft and follow-up,to compensate for the failure mode for double-fed wind turbine systems with double main shaft bearings.
● PTFE 0.02～ 0.1mm sprayed at lips to enhance the abrasion resistance and service life.

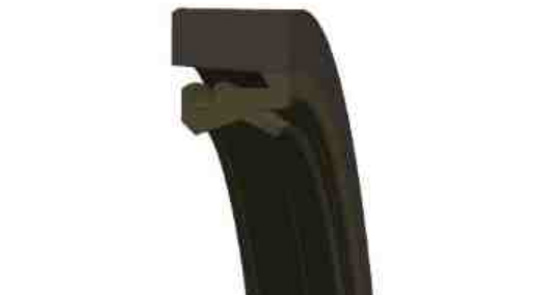

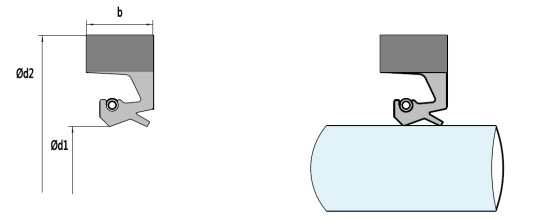

diagram of TJRF, main-vice lips seal for for double-fed wind turbine systems with double main shaft bearings

Code	ID(d1) x OD(d2) x Width(b)
TJRF590	590 x 640 x 22
TJRF630	630 x 694 x 25
TJRF630x1	630 x 690 x 30
TJR670	670 x 734 x 12.5
TJRF680	680 x 730 x 22
TJR700	700 x 764 x 12.5
TJRF700	700 x 764 x 25
TJR710	710 x 774 x 12.5
TJRF720	720 x 784 x 25
TJRF750	750 x 800 x 22
TJRF780	780 x 844 x 25

Code	ID(d1) x OD(d2) x Width(b)
TJRF790	790 x 854 x 25
TJR810	810 x 860 x 12.5
TJRF810	810 x 874 x 22
TJRF830	830 x 880 x 22
TJR836	836 x 896 x 15
TJR850	850 x 910 x 15
TJRF850	850 x 900 x 22
TJR870	870 x 920 x 20
TJRF870	870 x 920 x 25
TJRF870x1	870 x 934 x 25
TJR875	875 x 939 x 12.5

Code	ID(d1) x OD(d2) x Width(b)
TJRF890	890 x 954 x 25
TJRF920	920 x 970 x 25
TJRF920x1	920 x 980 x 30
TJRF940	940 x 1004 x 25
TJRF970	970 x 1034 x 25
TJRF1020	1020 x 1084 x 25
TJRF1150	1150 x 1214 x 25
TJRF1180	1180 x 1230 x 32
TJRF1300	1300 x 1364 x 25
TJR1729	1729 x 1796 x 25

Double main lips seal(TJY)

· Introduction
●Double lips will has the effect of double seal, the second seal will prevent the dust well.
●Designs for double-fed with single shaft bearing. Because the axial and radial offset issue of single main shaft bearing is worse than double main shaft bearing, wind speed and direction will also affect it. The usual seal design can’t satisfy that working condition, especially for radial offset and will cause grease leak. The special construction of the waist will provide better following-up and will make up for axial and radial offset of the shaft to ensure good seal performance.
● Chinese patented product.

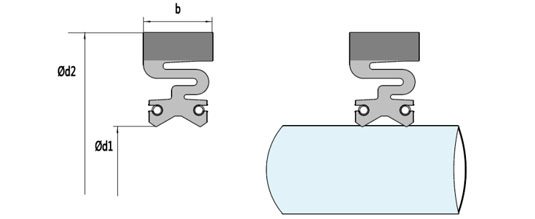

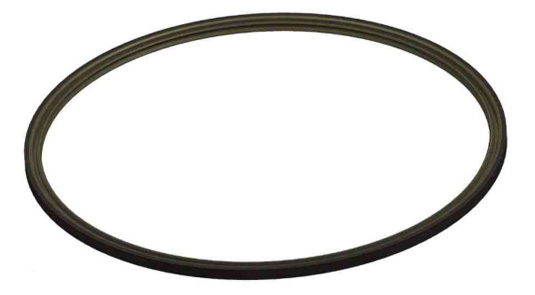

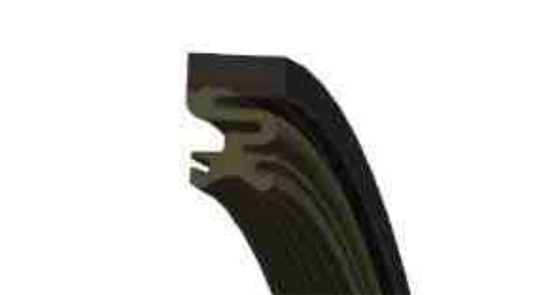

diagram of TJY, double main lips seal for double-fed wind turbine system with single shaft bearing

Code	ID(d1) x OD(d2) x Width(b)
TJY710	710 x 774 x 25
TJY744	744 x 808 x 25
TJY780	780 x 844 x 25
TJY830	830 x 894 x 25

Code	ID(d1) x OD(d2) x Width(b)
TJY850	850 x 910 x 30
TJY850x1	850 x 914 x 25
TJY875	875 x 939 x 25

Code	ID(d1) x OD(d2) x Width(b)
TJY880	880 x 944 x 25
TJY920	920 x 984 x 25
TJY1020	1020 x 1084 x 25

Contact us for a quotation.
