 PRODUCT |
|
|
V Ring, V Packing, X Ring |
Dalian Yingyu Co., Ltd. manufacture V Ring, V Packing and X Ring. Metric and Imperial standard compliant products are available.
We also manufacture special products as per customer's design.
The materials include Nitrile, Viton, H-Nbr, Aflas, Hypalon , Kalrez, EPDM, Silicone and NSF/FDA compliant materials. More info on materials.
|
|
|
V Ring
¡¤ Type VA, VS, VL, VE are available.
¡¤ Ozone resistance and Aging resistance.
¡¤ No-standard products can be made as per customer's design.
Download V RING CATEGORY for the details.
|
VA Seal  |
| Code |
Seal Dimension |
Housing Dimension |
| d1 |
W |
B |
b2 |
d |
d2 |
d3 |
b1 |
| VA-003 |
2.5 |
1.5 |
3 |
2.1 |
2.7-3.4 |
d+1 |
d+4 |
2.5¡À0.3 |
| VA-004 |
3.2 |
2 |
3.7 |
2.4 |
3.5-4.4 |
d+1 |
d+6 |
3.0¡À0.4 |
| VA-005 |
4 |
2 |
3.7 |
2.4 |
4.5-5.4 |
d+1 |
d+6 |
3.0¡À0.4 |
| VA-006 |
5 |
2 |
3.7 |
2.4 |
5.5-6.4 |
d+1 |
d+6 |
3.0¡À0.4 |
| VA-007 |
6 |
2 |
3.7 |
2.4 |
6.5-7.5 |
d+1 |
d+6 |
3.0¡À0.4 |
| VA-008 |
7 |
2 |
3.7 |
2.4 |
8.0-9.0 |
d+1 |
d+6 |
3.0¡À0.4 |
| VA-010 |
9 |
3 |
5.5 |
3.4 |
9.5-11.0 |
d+2 |
d+9 |
4.5¡À0.6 |
| VA-012 |
10.5 |
3 |
5.5 |
3.4 |
11.5-12.0 |
d+2 |
d+9 |
4.5¡À0.6 |
| VA-014 |
12.5 |
3 |
5.5 |
3.4 |
13.5-15.0 |
d+2 |
d+9 |
4.5¡À0.6 |
| VA-016 |
14 |
3 |
5.5 |
3.4 |
15.5-17.0 |
d+2 |
d+9 |
4.5¡À0.6 |
| VA-018 |
16 |
3 |
5.5 |
3.4 |
17.5-18.5 |
d+2 |
d+9 |
4.5¡À0.6 |
| VA-020 |
18 |
4 |
7.5 |
4.7 |
19.0-20.5 |
d+2 |
d+12 |
6.0¡À0.8 |
| VA-022 |
20 |
4 |
7.5 |
4.7 |
21.0-23.5 |
d+2 |
d+12 |
6.0¡À0.8 |
| VA-025 |
22 |
4 |
7.5 |
4.7 |
24.0-26.5 |
d+2 |
d+12 |
6.0¡À0.8 |
| VA-028 |
25 |
4 |
7.5 |
4.7 |
27.0-28.5 |
d+2 |
d+12 |
6.0¡À0.8 |
| VA-030 |
27 |
4 |
7.5 |
4.7 |
29.0-30.5 |
d+3 |
d+12 |
6.0¡À0.8 |
| VA-032 |
29 |
4 |
7.5 |
4.7 |
31.0-32.5 |
d+3 |
d+12 |
6.0¡À0.8 |
| VA-035 |
31 |
4 |
7.5 |
4.7 |
33.0-35.5 |
d+3 |
d+12 |
6.0¡À0.8 |
| VA-038 |
34 |
4 |
7.5 |
4.7 |
36.0-37.5 |
d+3 |
d+12 |
6.0¡À0.8 |
| VA-040 |
36 |
5 |
9 |
5.5 |
38.0-42.0 |
d+3 |
d+15 |
7.0¡À1.0 |
| VA-045 |
40 |
5 |
9 |
5.5 |
43.0-47.0 |
d+3 |
d+15 |
7.0¡À1.0 |
| VA-050 |
45 |
5 |
9 |
5.5 |
48.0-52.0 |
d+3 |
d+15 |
7.0¡À1.0 |
| VA-055 |
49 |
5 |
9 |
5.5 |
53.0-57.0 |
d+3 |
d+15 |
7.0¡À1.0 |
| VA-060 |
54 |
5 |
9 |
5.5 |
58.0-62.0 |
d+3 |
d+15 |
7.0¡À1.0 |
| VA-065 |
58 |
5 |
9 |
5.5 |
63.0-67.0 |
d+3 |
d+15 |
7.0¡À1.0 |
| VA-070 |
63 |
6 |
11 |
6.8 |
68.0-72.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-075 |
67 |
6 |
11 |
6.8 |
73.0-77.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-080 |
72 |
6 |
11 |
6.8 |
78.0-82.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-085 |
76 |
6 |
11 |
6.8 |
83.0-87.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-090 |
81 |
6 |
11 |
6.8 |
88.0-92.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-095 |
85 |
6 |
11 |
6.8 |
93.0-97.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-100 |
90 |
6 |
11 |
6.8 |
98.0-104.0 |
d+4 |
d+18 |
9.0¡À1.2 |
| VA-110 |
99 |
7 |
12.8 |
7.9 |
105.0-114.0 |
d+4 |
d+21 |
10.5¡À1.5 |
| VA-120 |
108 |
7 |
12,8 |
7,9 |
115,0-124,0 |
d+4 |
d+21 |
10,5¡À1,5 |
| VA-130 |
117 |
7 |
12,8 |
7,9 |
125,0-134,0 |
d+4 |
d+21 |
10,5¡À1,5 |
| VA-140 |
126 |
7 |
12,8 |
7,9 |
135,0-144,0 |
d+4 |
d+21 |
10,5¡À1,5 |
| VA-150 |
135 |
7 |
12,8 |
7,9 |
145,0-154,0 |
d+4 |
d+21 |
10,5¡À1,5 |
| VA-160 |
144 |
8 |
14,5 |
9 |
155,0-164,0 |
d+5 |
d+24 |
12,0¡À1,8 |
| VA-170 |
153 |
8 |
14,5 |
9 |
165,0-174,0 |
d+5 |
d+24 |
12,0¡À1,8 |
| VA-180 |
162 |
8 |
14,5 |
9 |
175,0-184,0 |
d+5 |
d+24 |
12,0¡À1,8 |
| VA-190 |
171 |
8 |
14,5 |
9 |
185,0-194,0 |
d+5 |
d+24 |
12,0¡À1,8 |
| VA-199 |
180 |
8 |
14,5 |
9 |
195,0-189,0 |
d+5 |
d+24 |
12,0¡À1,8 |
| VA-200 |
180 |
15 |
25 |
14,3 |
190,0-209,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-220 |
198 |
15 |
25 |
14,3 |
210,0-234,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-250 |
225 |
15 |
25 |
14,3 |
235,0-264,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-275 |
247 |
15 |
25 |
14,3 |
265,0-289,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-300 |
270 |
15 |
25 |
14,3 |
290,0-309,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-325 |
292 |
15 |
25 |
14,3 |
310,0-334,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-350 |
315 |
15 |
25 |
14,3 |
335,0-364,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-375 |
337 |
15 |
25 |
14,3 |
365,0-389,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-400 |
360 |
15 |
25 |
14,3 |
390,0-429,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-450 |
405 |
15 |
25 |
14,3 |
430,0-479,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-500 |
450 |
15 |
25 |
14,3 |
480,0-529,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-550 |
495 |
15 |
25 |
14,3 |
530,0-579,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-600 |
540 |
15 |
25 |
14,3 |
580,0-629,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-650 |
600 |
15 |
25 |
14,3 |
630,0-664,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-700 |
630 |
15 |
25 |
14,3 |
665,0-704,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-725 |
670 |
15 |
25 |
14,3 |
705,0-744,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-750 |
705 |
15 |
25 |
14,3 |
745,0-784,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-800 |
745 |
15 |
25 |
14,3 |
785,0-829,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-850 |
785 |
15 |
25 |
14,3 |
830,0-874,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-900 |
825 |
15 |
25 |
14,3 |
875,0-919,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-950 |
865 |
15 |
25 |
14,3 |
920,0-964,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1000 |
910 |
15 |
25 |
14,3 |
965,0-1010,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1050 |
955 |
15 |
25 |
14,3 |
1015,0-1060,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1100 |
1000 |
15 |
25 |
14,3 |
1065,0-1110,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1150 |
1045 |
15 |
25 |
14,3 |
1115,0-1160,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1200 |
1090 |
15 |
25 |
14,3 |
1165,0-1210,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1250 |
1135 |
15 |
25 |
14,3 |
1215,0-1260,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1300 |
1180 |
15 |
25 |
14,3 |
1270,0-1310,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1350 |
1225 |
15 |
25 |
14,3 |
1320,0-1360,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1400 |
1270 |
15 |
25 |
14,3 |
1370,0-1410,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1450 |
1315 |
15 |
25 |
14,3 |
1420,0-1460,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1500 |
1360 |
15 |
25 |
14,3 |
1470,0-1510,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1550 |
1405 |
15 |
25 |
14,3 |
1520,0-1560,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1600 |
1450 |
15 |
25 |
14,3 |
1570,0-1610,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1650 |
1495 |
15 |
25 |
14,3 |
1620,0-1660,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1700 |
1540 |
15 |
25 |
14,3 |
1670,0-1710,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1750 |
1585 |
15 |
25 |
14,3 |
1720,0-1760,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1800 |
1630 |
15 |
25 |
14,3 |
1770,0-1810,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1850 |
1675 |
15 |
25 |
14,3 |
1820,0-1860,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1900 |
1720 |
15 |
25 |
14,3 |
1870,0-1910,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-1950 |
1765 |
15 |
25 |
14,3 |
1920,0-1960,0 |
d+10 |
d+45 |
20,0¡À4,0 |
| VA-2000 |
1810 |
15 |
25 |
14,3 |
1970,0-2010,0 |
d+10 |
d+45 |
20,0¡À4,0 |
|

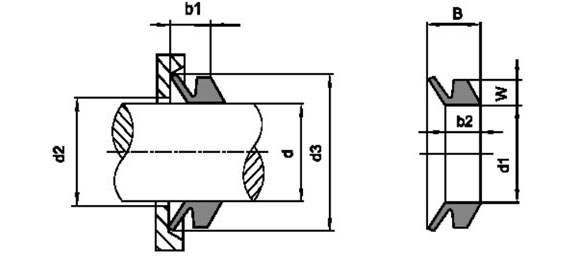

VS Seal  |
| Code |
Seal Dimension |
Housing Dimension |
| d1 |
W |
B |
b2 |
d |
d2 |
d3 |
b1 |
| VS-005 |
4 |
2 |
5,2 |
3,9 |
4,5-5,4 |
d+1 |
d+6 |
4,5¡À0,4 |
| VS-006 |
5 |
2 |
5,2 |
3,9 |
5,5-6,4 |
d+1 |
d+6 |
4,5¡À0,4 |
| VS-007 |
6 |
2 |
5,2 |
3,9 |
6,5-7,5 |
d+1 |
d+6 |
4,5¡À0,4 |
| VS-008 |
7 |
2 |
5,2 |
3,9 |
8,0-9,0 |
d+1 |
d+6 |
4,5¡À0,4 |
| VS-010 |
9 |
3 |
7,7 |
5,6 |
9,5-11,0 |
d+2 |
d+9 |
6,7¡À0,6 |
| VS-012 |
10,5 |
3 |
7,7 |
5,6 |
11,5-13,0 |
d+2 |
d+9 |
6,7¡À0,6 |
| VS-014 |
12,5 |
3 |
7,7 |
5,6 |
13,5-15,0 |
d+2 |
d+9 |
6,7¡À0,6 |
| VS-016 |
14 |
3 |
7,7 |
5,6 |
15,5-17,0 |
d+2 |
d+9 |
6,7¡À0,6 |
| VS-018 |
16 |
3 |
7,7 |
5,6 |
17,5-18,5 |
d+2 |
d+9 |
6,7¡À0,6 |
| VS-020 |
18 |
4 |
10,5 |
7,9 |
19,0-20,5 |
d+2 |
d+12 |
9,0¡À0,8 |
| VS-022 |
20 |
4 |
10,5 |
7,9 |
21,0-23,5 |
d+2 |
d+12 |
9,0¡À0,8 |
| VS-025 |
22 |
4 |
10,5 |
7,9 |
24,0-26,5 |
d+2 |
d+12 |
9,0¡À0,8 |
| VS-028 |
25 |
4 |
10,5 |
7,9 |
27,0-28,5 |
d+3 |
d+12 |
9,0¡À0,8 |
| VS-030 |
27 |
4 |
10,5 |
7,9 |
29,0-30,5 |
d+3 |
d+12 |
9,0¡À0,8 |
| VS-032 |
29 |
4 |
10,5 |
7,9 |
31,0-32,5 |
d+3 |
d+12 |
9,0¡À0,8 |
| VS-035 |
31 |
4 |
10,5 |
7,9 |
33,0-35,5 |
d+3 |
d+12 |
9,0¡À0,8 |
| VS-038 |
34 |
4 |
10,5 |
7,9 |
36,0-37,5 |
d+3 |
d+12 |
9,0¡À0,8 |
| VS-040 |
36 |
5 |
13 |
9,5 |
38,0-42,0 |
d+3 |
d+15 |
11,0¡À1,0 |
| VS-045 |
40 |
5 |
13 |
9,5 |
43,0-47,0 |
d+3 |
d+15 |
11,0¡À1,0 |
| VS-050 |
45 |
5 |
13 |
9,5 |
48,0-52,0 |
d+3 |
d+15 |
11,0¡À1,0 |
| VS-055 |
49 |
5 |
13 |
9,5 |
53,0-57,0 |
d+3 |
d+15 |
11,0¡À1,0 |
| VS-060 |
54,0 |
5,0 |
13,0 |
9,5 |
58,0-62,0 |
d+3 |
d+15 |
11,0¡À1,0 |
| VS-065 |
58,0 |
5,0 |
13,0 |
9,5 |
63,0-67,0 |
d+3 |
d+15 |
11,0¡À1,0 |
| VS-070 |
63,0 |
6,0 |
15,5 |
11,3 |
68,0-72,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-075 |
67,0 |
6,0 |
15,5 |
11,3 |
73,0-77,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-080 |
72,0 |
6,0 |
15,5 |
11,3 |
78,0-82,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-085 |
76,0 |
6,0 |
15,5 |
11,3 |
83,0-87,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-090 |
81,0 |
6,0 |
15,5 |
11,3 |
88,0-92,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-095 |
85,0 |
6,0 |
15,5 |
11,3 |
93,0-97,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-100 |
90,0 |
6,0 |
15,5 |
11,3 |
98,0-104,0 |
d+4 |
d+18 |
13,5¡À1,2 |
| VS-110 |
99,0 |
7,0 |
18,0 |
13,1 |
105,0-114,0 |
d+4 |
d+21 |
15,5¡À1,5 |
| VS-120 |
108,0 |
7,0 |
18,0 |
13,1 |
115,0-124,0 |
d+4 |
d+21 |
15,5¡À1,5 |
| VS-130 |
117,0 |
7,0 |
18,0 |
13,1 |
125,0-134,0 |
d+4 |
d+21 |
15,5¡À1,5 |
| VS-140 |
126,0 |
7,0 |
18,0 |
13,1 |
135,0-144,0 |
d+4 |
d+21 |
15,5¡À1,5 |
| VS-150 |
135,0 |
7,0 |
18,0 |
13,1 |
145,0-154,0 |
d+4 |
d+21 |
15,5¡À1,5 |
| VS-160 |
144,0 |
8,0 |
20,5 |
15,0 |
155,0-164,0 |
d+5 |
d+24 |
18,0¡À1,8 |
| VS-170 |
153,0 |
8,0 |
20,5 |
15,0 |
165,0-174,0 |
d+5 |
d+24 |
18,0¡À1,8 |
| VS-180 |
162,0 |
8,0 |
20,5 |
15,0 |
175,0-184,0 |
d+5 |
d+24 |
18,0¡À1,8 |
| VS-190 |
171,0 |
8,0 |
20,5 |
15,0 |
185,0-194,0 |
d+5 |
d+24 |
18,0¡À1,8 |
| VS-200 |
180,0 |
8,0 |
20,5 |
15,0 |
195,0-210,0 |
d+5 |
d+24 |
18,0¡À1,8 |
|

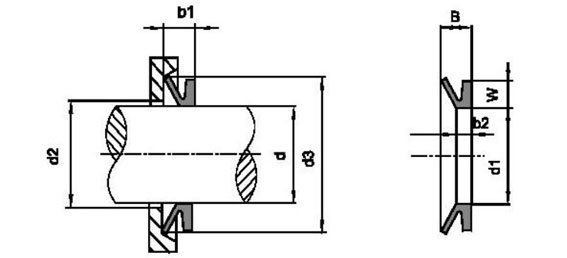

VL Seal  |
| Code |
Seal Dimension |
Housing Dimension |
| d1 |
W |
B |
b2 |
d |
d2 |
d3 |
b1 |
| VL-120 |
108 |
6,5 |
10,5 |
6,0 |
115-120 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-130 |
117 |
6,5 |
10,5 |
6,0 |
125-130 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-140 |
126 |
6,5 |
10,5 |
6,0 |
135-140 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-150 |
135 |
6,5 |
10,5 |
6,0 |
145-150 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-160 |
144 |
6,5 |
10,5 |
6,0 |
155-160 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-170 |
153 |
6,5 |
10,5 |
6,0 |
165-170 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-180 |
162 |
6,5 |
10,5 |
6,0 |
175-180 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-190 |
171 |
6,5 |
10,5 |
6,0 |
185-190 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-200 |
182 |
6,5 |
10,5 |
6,0 |
195-205 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-220 |
198 |
6,5 |
10,5 |
6,0 |
210-230 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-250 |
225 |
6,5 |
10,5 |
6,0 |
233-255 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-275 |
247 |
6,5 |
10,5 |
6,0 |
260-280 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-300 |
270 |
6,5 |
10,5 |
6,0 |
285-305 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-325 |
292 |
6,5 |
10,5 |
6,0 |
310-330 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-350 |
315 |
6,5 |
10,5 |
6,0 |
335-360 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-375 |
337 |
6,5 |
10,5 |
6,0 |
365-380 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-400 |
360 |
6,5 |
10,5 |
6,0 |
385-405 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-425 |
382 |
6,5 |
10,5 |
6,0 |
410-435 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-450 |
405 |
6,5 |
10,5 |
6,0 |
440-475 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-500 |
450 |
6,5 |
10,5 |
6,0 |
480-525 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-550 |
485 |
6,5 |
10,5 |
6,0 |
530-575 |
d+5 |
d+20 |
8,0¡À1,5 |
| VL-600 |
540 |
6,5 |
10,5 |
6,0 |
580-630 |
d+5 |
d+20 |
8,0¡À1,5 |
|

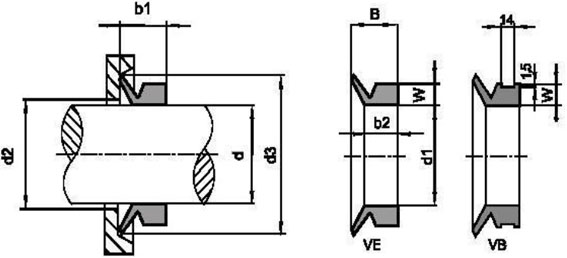

VE, VB Seal  |
| Code |
Seal Dimension |
Housing Dimension |
| d1 |
W |
B |
b2 |
d |
d2 |
d3 |
b1 |
| VB-300 |
294 |
21 |
65,0 |
32,5 |
300 |
d+24 |
d+115 |
50,0¡À12 |
| VB-305 |
299 |
21 |
65,0 |
32,5 |
305 |
d+24 |
d+115 |
50,0¡À12 |
| VE-310 |
304 |
30 |
65,0 |
32,5 |
310 |
d+24 |
d+115 |
50,0¡À12 |
| VB-315 |
309 |
21 |
65,0 |
32,5 |
315 |
d+24 |
d+115 |
50,0¡À12 |
| VE-320 |
314 |
30 |
65,0 |
32,5 |
320 |
d+24 |
d+115 |
50,0¡À12 |
| VB-325 |
319 |
21 |
65,0 |
32,5 |
325 |
d+24 |
d+115 |
50,0¡À12 |
| VB-330 |
323 |
21 |
65,0 |
32,5 |
330 |
d+24 |
d+115 |
50,0¡À12 |
| VB-335 |
328 |
21 |
65,0 |
32,5 |
335 |
d+24 |
d+115 |
50,0¡À12 |
| VB-340 |
333 |
21 |
65,0 |
32,5 |
340 |
d+24 |
d+115 |
50,0¡À12 |
| VB-345 |
338 |
21 |
65,0 |
32,5 |
345 |
d+24 |
d+115 |
50,0¡À12 |
| VB-350 |
343 |
21 |
65,0 |
32,5 |
350 |
d+24 |
d+115 |
50,0¡À12 |
| VB-355 |
347 |
21 |
65,0 |
32,5 |
355 |
d+24 |
d+115 |
50,0¡À12 |
| VB-360 |
352 |
21 |
65,0 |
32,5 |
360 |
d+24 |
d+115 |
50,0¡À12 |
| VB-365 |
357 |
21 |
65,0 |
32,5 |
365 |
d+24 |
d+115 |
50,0¡À12 |
| VB-375 |
367 |
21 |
65,0 |
32,5 |
375 |
d+24 |
d+115 |
50,0¡À12 |
| VE-380 |
371 |
30 |
65,0 |
32,5 |
380 |
d+24 |
d+115 |
50,0¡À12 |
| VB-385 |
376 |
21 |
65,0 |
32,5 |
385 |
d+24 |
d+115 |
50,0¡À12 |
| VE-390 |
381 |
30 |
65,0 |
32,5 |
390 |
d+24 |
d+115 |
50,0¡À12 |
| VB-395 |
386 |
21 |
65,0 |
32,5 |
395 |
d+24 |
d+115 |
50,0¡À12 |
| VB-400 |
391 |
21 |
65,0 |
32,5 |
400 |
d+24 |
d+115 |
50,0¡À12 |
| VB-405 |
396 |
21 |
65,0 |
32,5 |
405 |
d+24 |
d+115 |
50,0¡À12 |
| VB-410 |
401 |
21 |
65,0 |
32,5 |
410 |
d+24 |
d+115 |
50,0¡À12 |
| VB-415 |
405 |
21 |
65,0 |
32,5 |
415 |
d+24 |
d+115 |
50,0¡À12 |
| VB-420 |
410 |
21 |
65,0 |
32,5 |
420 |
d+24 |
d+115 |
50,0¡À12 |
| VB-425 |
415 |
21 |
65,0 |
32,5 |
425 |
d+24 |
d+115 |
50,0¡À12 |
| VB-430 |
420 |
21 |
65,0 |
32,5 |
430 |
d+24 |
d+115 |
50,0¡À12 |
| VB-435 |
425 |
21 |
65,0 |
32,5 |
435 |
d+24 |
d+115 |
50,0¡À12 |
| VB-440 |
429 |
21 |
65,0 |
32,5 |
440 |
d+24 |
d+115 |
50,0¡À12 |
| VB-445 |
434 |
21 |
65,0 |
32,5 |
445 |
d+24 |
d+115 |
50,0¡À12 |
| VB-450 |
439 |
21 |
65,0 |
32,5 |
450 |
d+24 |
d+115 |
50,0¡À12 |
| VB-455 |
444 |
21 |
65,0 |
32,5 |
455 |
d+24 |
d+115 |
50,0¡À12 |
| VE-460 |
448 |
30 |
65,0 |
32,5 |
460 |
d+24 |
d+115 |
50,0¡À12 |
| VB-465 |
453 |
21 |
65,0 |
32,5 |
465 |
d+24 |
d+115 |
50,0¡À12 |
| VB-470 |
458 |
21 |
65,0 |
32,5 |
470 |
d+24 |
d+115 |
50,0¡À12 |
| VB-475 |
463 |
21 |
65,0 |
32,5 |
475 |
d+24 |
d+115 |
50,0¡À12 |
| VB-480 |
468 |
21 |
65,0 |
32,5 |
480 |
d+24 |
d+115 |
50,0¡À12 |
| VE-485 |
473 |
30 |
65,0 |
32,5 |
485 |
d+24 |
d+115 |
50,0¡À12 |
| VB-490 |
478 |
21 |
65,0 |
32,5 |
490 |
d+24 |
d+115 |
50,0¡À12 |
| VB-495 |
483 |
21 |
65,0 |
32,5 |
495 |
d+24 |
d+115 |
50,0¡À12 |
| VB-500 |
488 |
21 |
65,0 |
32,5 |
500 |
d+24 |
d+115 |
50,0¡À12 |
| VB-505 |
493 |
21 |
65,0 |
32,5 |
505 |
d+24 |
d+115 |
50,0¡À12 |
| VB-510 |
497 |
21 |
65,0 |
32,5 |
510 |
d+24 |
d+115 |
50,0¡À12 |
| VE-515 |
502 |
30 |
65,0 |
32,5 |
515 |
d+24 |
d+115 |
50,0¡À12 |
| VB-520 |
507 |
21 |
65,0 |
32,5 |
520 |
d+24 |
d+115 |
50,0¡À12 |
| VB-525 |
512 |
21 |
65,0 |
32,5 |
525 |
d+24 |
d+115 |
50,0¡À12 |
| VB-530 |
517 |
21 |
65,0 |
32,5 |
530 |
d+24 |
d+115 |
50,0¡À12 |
| VB-535 |
521 |
21 |
65,0 |
32,5 |
535 |
d+24 |
d+115 |
50,0¡À12 |
| VB-540 |
526 |
21 |
65,0 |
32,5 |
540 |
d+24 |
d+115 |
50,0¡À12 |
| VB-545 |
531 |
21 |
65,0 |
32,5 |
545 |
d+24 |
d+115 |
50,0¡À12 |
| VB-550 |
536 |
21 |
65,0 |
32,5 |
550 |
d+24 |
d+115 |
50,0¡À12 |
| VB-555 |
541 |
21 |
65,0 |
32,5 |
555 |
d+24 |
d+115 |
50,0¡À12 |
| VB-560 |
546 |
21 |
65,0 |
32,5 |
560 |
d+24 |
d+115 |
50,0¡À12 |
| VB-565 |
550 |
21 |
65,0 |
32,5 |
565 |
d+24 |
d+115 |
50,0¡À12 |
| VB-570 |
555 |
21 |
65,0 |
32,5 |
570 |
d+24 |
d+115 |
50,0¡À12 |
| VB-575 |
560 |
21 |
65,0 |
32,5 |
575 |
d+24 |
d+115 |
50,0¡À12 |
| VE-580 |
565 |
30 |
65,0 |
32,5 |
580 |
d+24 |
d+115 |
50,0¡À12 |
| VB-585 |
570 |
21 |
65,0 |
32,5 |
585 |
d+24 |
d+115 |
50,0¡À12 |
| VB-590 |
575 |
21 |
65,0 |
32,5 |
590 |
d+24 |
d+115 |
50,0¡À12 |
| VE-600 |
582 |
30 |
65,0 |
32,5 |
600 |
d+24 |
d+115 |
50,0¡À12 |
| VB-610 |
592 |
21 |
65,0 |
32,5 |
610 |
d+24 |
d+115 |
50,0¡À12 |
| VB-620 |
602 |
21 |
65,0 |
32,5 |
620 |
d+24 |
d+115 |
50,0¡À12 |
| VB-630 |
612 |
21 |
65,0 |
32,5 |
630 |
d+24 |
d+115 |
50,0¡À12 |
| VB-640 |
621 |
21 |
65,0 |
32,5 |
640 |
d+24 |
d+115 |
50,0¡À12 |
| VB-650 |
631 |
21 |
65,0 |
32,5 |
650 |
d+24 |
d+115 |
50,0¡À12 |
| VE-660 |
640 |
30 |
65,0 |
32,5 |
660 |
d+24 |
d+115 |
50,0¡À12 |
| VB-670 |
650 |
21 |
65,0 |
32,5 |
670 |
d+24 |
d+115 |
50,0¡À12 |
| VB-680 |
660 |
21 |
65,0 |
32,5 |
680 |
d+24 |
d+115 |
50,0¡À12 |
| VE-690 |
670 |
30 |
65,0 |
32,5 |
690 |
d+24 |
d+115 |
50,0¡À12 |
| VB-700 |
680 |
21 |
65,0 |
32,5 |
700 |
d+24 |
d+115 |
50,0¡À12 |
| VB-710 |
689 |
21 |
65,0 |
32,5 |
710 |
d+24 |
d+115 |
50,0¡À12 |
| VB-720 |
699 |
21 |
65,0 |
32,5 |
720 |
d+24 |
d+115 |
50,0¡À12 |
| VB-730 |
709 |
21 |
65,0 |
32,5 |
730 |
d+24 |
d+115 |
50,0¡À12 |
| VE-740 |
718 |
30 |
65,0 |
32,5 |
740 |
d+24 |
d+115 |
50,0¡À12 |
| VB-750 |
728 |
21 |
65,0 |
32,5 |
750 |
d+24 |
d+115 |
50,0¡À12 |
| VB-760 |
735 |
21 |
65,0 |
32,5 |
760 |
d+24 |
d+115 |
50,0¡À12 |
| VB-770 |
743 |
21 |
65,0 |
32,5 |
770 |
d+24 |
d+115 |
50,0¡À12 |
| VB-780 |
751 |
21 |
65,0 |
32,5 |
780 |
d+24 |
d+115 |
50,0¡À12 |
| VB-790 |
759 |
21 |
65,0 |
32,5 |
790 |
d+24 |
d+115 |
50,0¡À12 |
| VB-800 |
768 |
21 |
65,0 |
32,5 |
800 |
d+24 |
d+115 |
50,0¡À12 |
| VB-810 |
777 |
21 |
65,0 |
32,5 |
810 |
d+24 |
d+115 |
50,0¡À12 |
| VE-820 |
786 |
30 |
65,0 |
32,5 |
820 |
d+24 |
d+115 |
50,0¡À12 |
| VB-830 |
796 |
21 |
65,0 |
32,5 |
830 |
d+24 |
d+115 |
50,0¡À12 |
| VB-840 |
805 |
21 |
65,0 |
32,5 |
840 |
d+24 |
d+115 |
50,0¡À12 |
| VB-850 |
814 |
21 |
65,0 |
32,5 |
850 |
d+24 |
d+115 |
50,0¡À12 |
| VB-860 |
824 |
21 |
65,0 |
32,5 |
860 |
d+24 |
d+115 |
50,0¡À12 |
| VB-870 |
833 |
21 |
65,0 |
32,5 |
870 |
d+24 |
d+115 |
50,0¡À12 |
| VB-880 |
843 |
21 |
65,0 |
32,5 |
880 |
d+24 |
d+115 |
50,0¡À12 |
| VB-890 |
853 |
21 |
65,0 |
32,5 |
890 |
d+24 |
d+115 |
50,0¡À12 |
| VE-900 |
871 |
30 |
65,0 |
32,5 |
900 |
d+24 |
d+115 |
50,0¡À12 |
| VB-920 |
880 |
21 |
65,0 |
32,5 |
920 |
d+24 |
d+115 |
50,0¡À12 |
| VB-930 |
890 |
21 |
65,0 |
32,5 |
930 |
d+24 |
d+115 |
50,0¡À12 |
| VB-940 |
900 |
21 |
65,0 |
32,5 |
940 |
d+24 |
d+115 |
50,0¡À12 |
| VB-950 |
911 |
21 |
65,0 |
32,5 |
950 |
d+24 |
d+115 |
50,0¡À12 |
| VB-960 |
921 |
21 |
65,0 |
32,5 |
960 |
d+24 |
d+115 |
50,0¡À12 |
| VB-970 |
932 |
21 |
65,0 |
32,5 |
970 |
d+24 |
d+115 |
50,0¡À12 |
| VB-980 |
942 |
21 |
65,0 |
32,5 |
980 |
d+24 |
d+115 |
50,0¡À12 |
| VB-990 |
953 |
21 |
65,0 |
32,5 |
990 |
d+24 |
d+115 |
50,0¡À12 |
| VE-1000 |
963 |
30 |
65,0 |
32,5 |
1000 |
d+24 |
d+115 |
50,0¡À12 |
| VE-1020 |
973 |
30 |
65,0 |
32,5 |
1020 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1040 |
990 |
21 |
65,0 |
32,5 |
1040 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1060 |
1008 |
21 |
65,0 |
32,5 |
1060 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1080 |
1027 |
21 |
65,0 |
32,5 |
1080 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1100 |
1045 |
21 |
65,0 |
32,5 |
1100 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1120 |
1065 |
21 |
65,0 |
32,5 |
1120 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1140 |
1084 |
21 |
65,0 |
32,5 |
1140 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1160 |
1103 |
21 |
65,0 |
32,5 |
1160 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1180 |
1121 |
21 |
65,0 |
32,5 |
1180 |
d+24 |
d+115 |
50,0¡À12 |
| VE-1200 |
1139 |
30 |
65,0 |
32,5 |
1200 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1220 |
1157 |
21 |
65,0 |
32,5 |
1220 |
d+24 |
d+115 |
50,0¡À12 |
| VE-1240 |
1176 |
30 |
65,0 |
32,5 |
1240 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1260 |
1195 |
21 |
65,0 |
32,5 |
1260 |
d+24 |
d+115 |
50,0¡À12 |
| VE-1280 |
1218 |
30 |
65,0 |
32,5 |
1280 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1300 |
1240 |
21 |
65,0 |
32,5 |
1300 |
d+24 |
d+115 |
50,0¡À12 |
| VE-1325 |
1259 |
30 |
65,0 |
32,5 |
1325 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1350 |
1281 |
21 |
65,0 |
32,5 |
1350 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1375 |
1305 |
21 |
65,0 |
32,5 |
1375 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1400 |
1328 |
21 |
65,0 |
32,5 |
1400 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1425 |
1350 |
21 |
65,0 |
32,5 |
1425 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1450 |
1374 |
21 |
65,0 |
32,5 |
1450 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1475 |
1397 |
21 |
65,0 |
32,5 |
1475 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1500 |
1419 |
21 |
65,0 |
32,5 |
1500 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1525 |
1443 |
21 |
65,0 |
32,5 |
1525 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1550 |
1467 |
21 |
65,0 |
32,5 |
1550 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1575 |
1495 |
21 |
65,0 |
32,5 |
1575 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1600 |
1524 |
21 |
65,0 |
32,5 |
1600 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1650 |
1559 |
21 |
65,0 |
32,5 |
1650 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1700 |
1596 |
21 |
65,0 |
32,5 |
1700 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1750 |
1632 |
21 |
65,0 |
32,5 |
1750 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1800 |
1671 |
21 |
65,0 |
32,5 |
1800 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1850 |
1714 |
21 |
65,0 |
32,5 |
1850 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1900 |
1753 |
21 |
65,0 |
32,5 |
1900 |
d+24 |
d+115 |
50,0¡À12 |
| VB-1950 |
1794 |
21 |
65,0 |
32,5 |
1950 |
d+24 |
d+115 |
50,0¡À12 |
| VB-2000 |
1844 |
21 |
65,0 |
32,5 |
2000 |
d+24 |
d+115 |
50,0¡À12 |
|
|
|
|
V Packing
¡¤ Metric and Imperial standard is available.
¡¤ Fabric inserted V-Packing is available.
¡¤ No-standard products can be made as per customer's design.
Download V PACKING CATEGORY for the details.
|
|
|
X Ring
¡¤ Metric and Imperial standard is available.
¡¤ No-standard products can be made as per customer's design.
Download X RING CATEGORY for the details.
|
|
| Contact us for a quotation. |
|
|
|
|
|
 Rolling Mill Seal |
| Bearing Seal / Strip |
| Rubber Seal For Valve |
| Custom Molded Rubber Product |
| O Ring / O Ring Kit |
| U Ring / Piston & Rod Seal |
| Wiper Seal |
| V Ring / V Packing / X Ring |
| Oil Seal |
| Rubber Cord |
|
|
86-411-82821900
86-18624422419
